OMEK Power 800 kVA Transformer
Are you looking for an 800 kVA transformer that fits your system? OMEK Power provides 3 phase step down transformer 800 kVA for you. We provide voltage options including 11 kV, 20 kV, and 33 kV, etc. Other specific voltage requirements, we can also customize for you.
OMEK supplies either a 800 kva hv lv cast resin distribution transformer or an 800kva oil immersed transformer. You can let us know your application and specific loss requirement, we will give you a fast quotation.
800 kVA Transformer Specification
- s11-20kv
- s13-10kv
- scb10-800/10kv

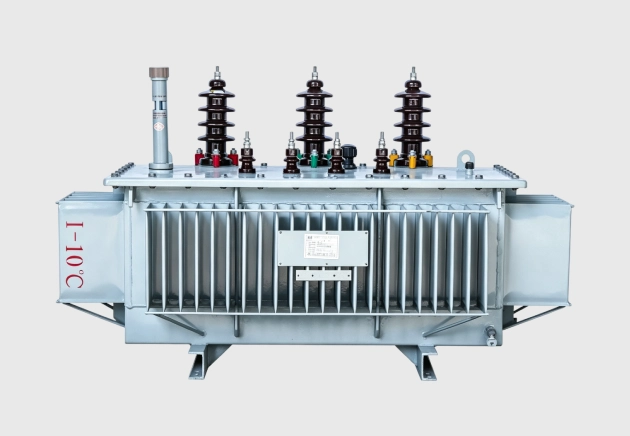

OMEK s11-20kv 800kva oil immersed transformer uses mineral oil for insulation and cooling. The whole body is hermetically sealed without a conservator tank. It is applicable for 50 Hz or 60 Hz frequency, off-circuit tap-changer on the primary voltage side is ±2×2.5%. Other detailed specifications such as impedance are listed in the datasheet below.
| Rated capacity | 800 kVA |
|---|---|
| High voltage | 20 kV |
| Tap range | ±2 × 2.5% / ±5% |
| Low voltage | 0.4 kV |
| Connected group label | Dyn11 / Yyn0 |
| No-load loss | 980 W |
| Load loss (75°C) | 8250 W |
| No-load current | 0.15% |
| Impedance voltage | 6.0% |

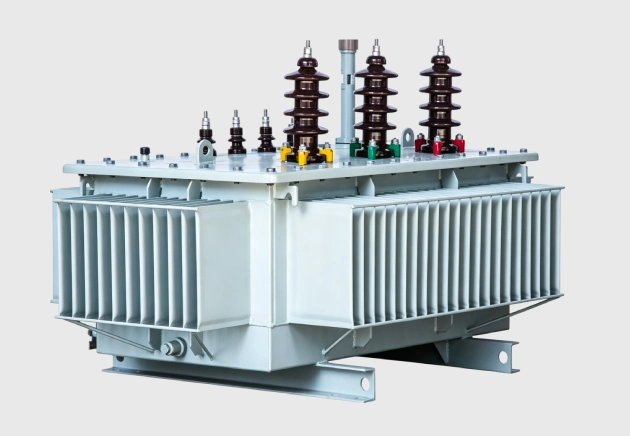

OMEK s13-10kv 800kva oil immersed transformer uses mineral oil for insulation and cooling. The whole body is hermetically sealed without a conservator tank. It is applicable for 50 Hz or 60 Hz frequency, off-circuit tap-changer on the primary voltage side is ±2×2.5%. Other popular models are s13-20kv and s13-35kv.
| Rated capacity | 800 kVA |
|---|---|
| High voltage | 10 kV |
| Tap range | ±2 × 2.5% / ±5% |
| Low voltage | 0.4 kV |
| Connected group label | Dyn11 / Yyn0 |
| No-load loss | 700 W |
| Load loss (75°C) | 7500 W |
| No-load current | 0.6% |
| Impedance voltage | 4.5% |
| Overall dimension (L × W × H) | 1570 × 1090 × 1280 mm |
| Total weight | 1985 kg |

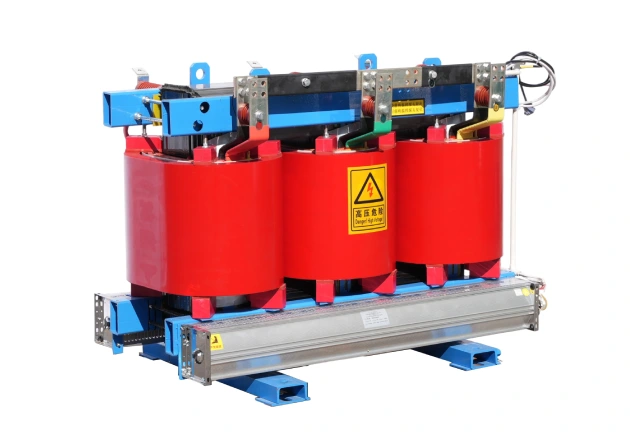

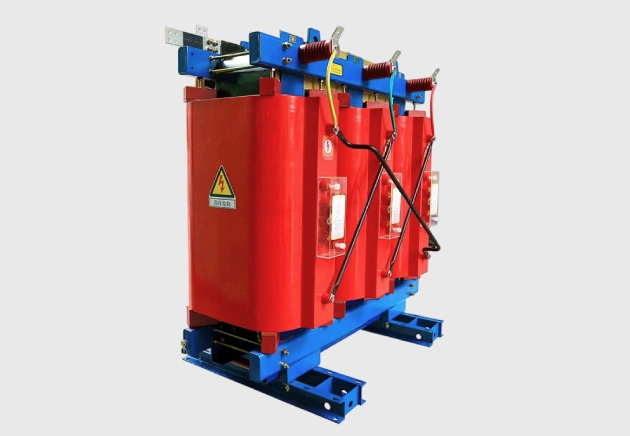

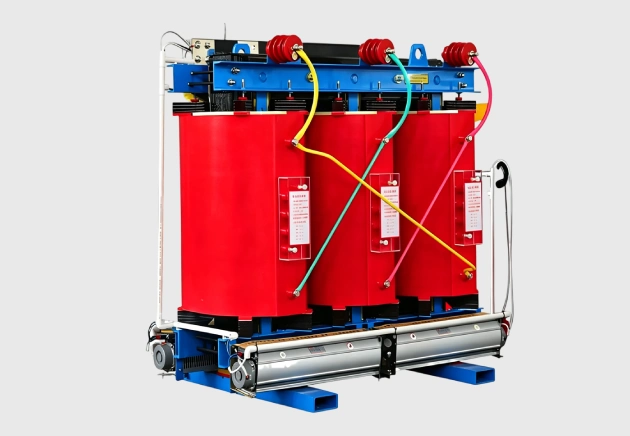

OMEK 800 kVA hv lv cast resin distribution transformer features fireproof and low maintenance. It is designed with copper foil and premium silicon steel core. Enclosure for transformer 800kva can be offered with IP20‑IP54. Multiple no-load and load loss options can be customized to meet your needs.
It is moisture and dust proof, environment friendly and ideal for indoor use.
| Rated capacity | 800 kVA |
|---|---|
| High voltage | 10 kV |
| Tap range | ±2 × 2.5% / ±5% |
| Low voltage | 0.4 kV |
| Connected group label | Dyn11 |
| No-load loss | 1520 W |
| Load loss — 130°C (B) | 6550 W |
| Load loss — 155°C (F) | 6960 W |
| Load loss — 180°C (H) | 7460 W |
| No-load current | 0.3% |
| Impedance voltage | 4.0% |
| Sound level | 65 dB |
| Overall dimension (L × W × H) | 1375 × 1450 × 1480 mm |
| Total weight | 1880 kg |
Benefits of Our 800kVA Transformer

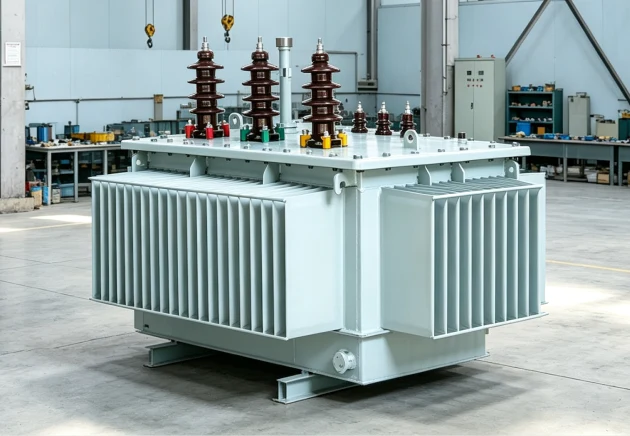

OMEK’s transformator 800kVA not only owns a large capacity, but also achieves a good balance between power efficiency and power distribution reliability.
The 800 kVA capacity can power a significant amount of motor loads, air conditioning systems, lighting, and general production equipment. Thereby, it helps to avoid prolonged full-load operation of the transformer.
Three-phase output provides higher work efficiency compared to single-phase power. Under the same fuel and consumable conditions, it delivers more electrical energy with more balanced power distribution. Equipment like motors can run more efficiently with greater power.
The 800 kVA rating is a popular specification. Therefore, the relative supporting products, such as high-voltage switchgear, low-voltage distribution cabinet and accessories can be easily located on the market. This ensures convenient maintenance and replacement in the future. Thus, it needs relatively lower repair costs.
Why Choose OMEK's 800 kVA Transformator?

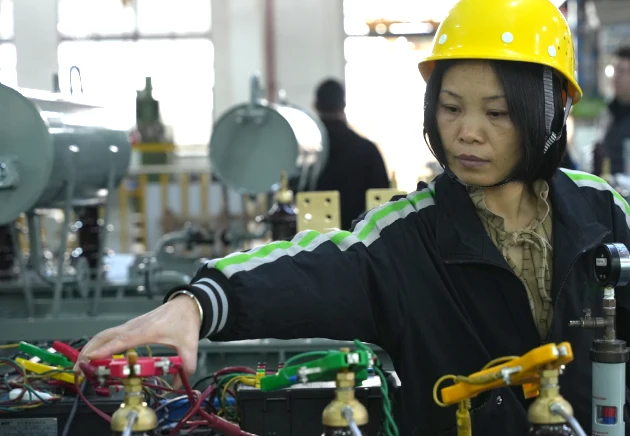

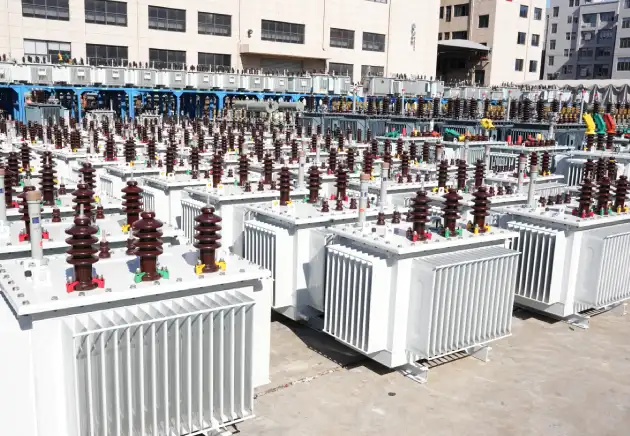

We always welcome our clients to our factory to have a quality inspection on site at any time.
We will notify you in writing three weeks in advance of the scheduled test date.

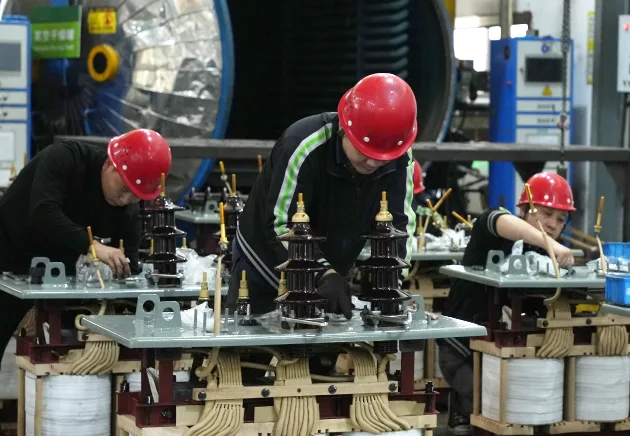

Just send us your drawings, and we can build it to your specifications.

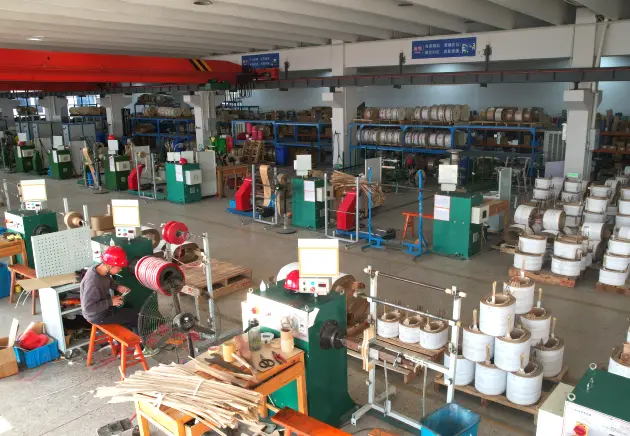

OEM processing for general contractor and agent. Over 10 workshops can deal with large order quantities.
OMEK not only provides 800 kVA transformers, but also complete power distribution system solutions.
Let OMEK be your reliable 800 kVA transformer supplier
OMEK’s transformer 800kVA manufacturing is with integrity and honesty. Our production is strictly compliant with the contract’s agreement. All material we adopt are completely and truthfully marked in the contract, nameplate and factory inspection report.
Let OMEK be your reliable 800 kVA distribution transformers supplier, and you won’t be disappointed. Talk to our team now!
800 kVA Transformer Warranty
The warranty period begins once your 800 kVA distribution transformers have passed on-site acceptance and is put into operation.
During the warranty period that we reached agreement, if any design, material, or manufacturing defects are found, OMEK Power will provide replacement parts free of charge. When necessary, we can dispatch technical personnel to your site for repair or installation.
800 kVA Transformer Package and Delivery
For the normal customized 800kVA power transformer, our lead time is 25‑35 working days after order confirmation. For urgent orders, we will coordinate internally to prioritize your production.
The 800 kVA transformer is securely packaged for sea and inland transportation, with protection against rust, moisture, dust, and impact. Each package is clearly marked with lifting points, center of gravity, fragile-item labels, contract number, and destination.
FAQs
Have any questions? We’re here to help you out.
OMEK’s standard 800kVA transformer is configured with off-circuit tap-changer (±2×2.5%). It is only allowed to adjust when the 800kVA transformer is de-energized. Full load or live operation is strictly prohibited.
If you require 800kVA transformer regulation at full load, select an on-load tap changer (OLTC), which can meet continuous voltage regulation under full load operation.

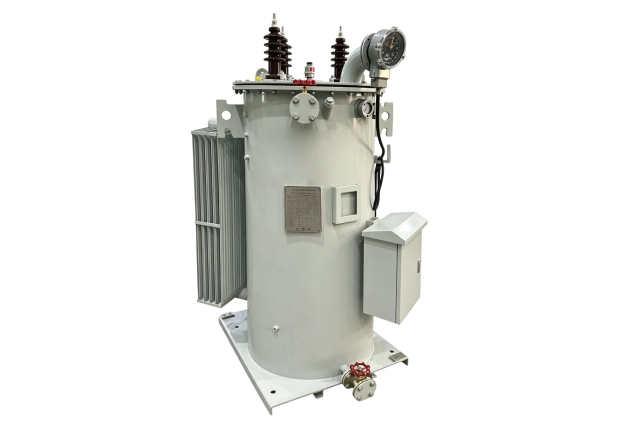

The above two configurations allow ±5% voltage regulation. When your grid voltage fluctuation reaches ‑15%~+15%, only a step voltage regulator can help.

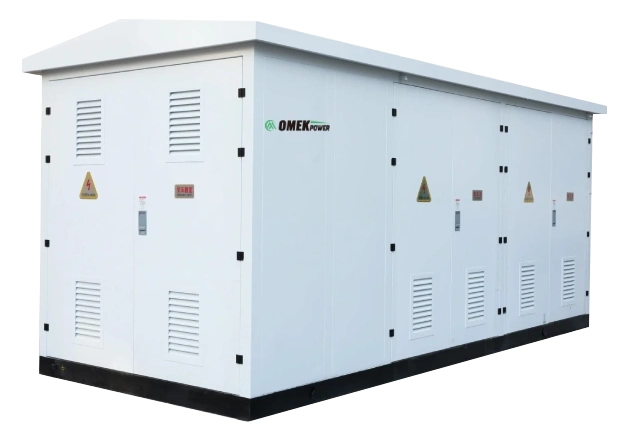

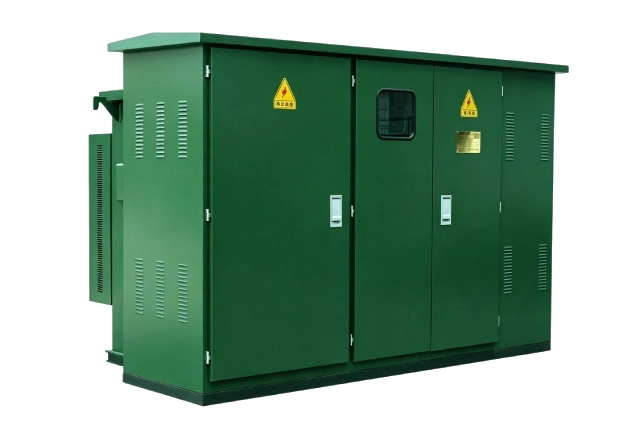

OMEK Power offers stand‑alone 800 kVA transformer unit, and we also can do compact kiosk substation to include 800 kVA transformer with MV switchgear and LV panels inside enclosure.
| Stand‑alone 800 kVA Transformer | Pad‑mount / Compact Kiosk Substation |
|---|---|
| Only transformer unit, no built‑in HV/LV switchgear | Transformer unit + HV & LV switchgear fully integrated inside metal enclosure |
| Need separate HV/LV switchgears | Install outdoors directly on concrete pad, no dedicated substation room required |
| Replace your old substation transformer equipment | Ideal for construction sites, residential areas, solar PV projects, plug‑and‑play |
