Three Phase 2500 kVA Transformer 6kV-35 kV IEC Standard
OMEK Power 2500 kVA transformer is designed for loads ranging from 1800 to 2250. It adopts all copper coil windings with a longer life span 30 years.
It has a high rated capacity as well as a high efficiency grade. It can meet level 1 energy efficiency. OMEK can do 2500 kVA dry type transformer and 2500 kVA oil filled transformer. If you have an urgent requirement for the installation, our 2500 kva pad mount transformer of looped network type can meet your needs.
Now contact us to get our quick quotation of a 2.5 MVA transformer!
2500 kVA Transformer Types
2500 kVA Dry Type Transformer 3 Phase SCB18-2500/10 ⭐⭐⭐⭐⭐
| 2500 kVA 3 Phase SCB18-2500/10 | |
| Parameter | Value/Specification |
| Rated Capacity | 2500 kVA / 2.5MVA |
| Type | Cast Resin Dry Type |
| Voltage Combination | High Voltage: 10.5 / 11 kV Voltage Range: ±2 × 2.5% or ±5% Low Voltage: 0.4 kV |
| Connection Group Label | Dyn11 |
| No-load Loss | 180℃(H): 2080 W |
| Load Loss | 100℃: 14535 W 120℃: 15445 W 145℃: 16605 W |
| No-load Current | 0.2 |
| Impedance Voltage | 6% |
| Sound Level | 69 dB(A) |
| Dimensions | 1900 mm × 2050 mm × 1565 mm |
| Total Weight | 5495 kg |
General Characteristics
✅ This distribution transformer adopts air cooling or forced air cooling to dissipate heat. That avoids the oil leakage problem since it is oil free.
✅ Its core is made of high permeability silicon steel sheet. It results in lower no-load loss and load loss. That helps you achieve a high efficiency operation.
✅ It is clean and good for the environment. Low noise, excellent moisture proof and dust proof ability.
2500 KVA Oil Filled Transformer 3 Phase S22-M-2500/35 ⭐⭐⭐⭐⭐
| 2500 KVA 3 Phase S22-M-2500/35 | |
| Parameter | Value/Specification |
| Rated Capacity | 2500 kVA / 2.5 MVA |
| Voltage Combination | High Voltage: 35 kV Voltage Range: ±2 × 2.5% or ±5% Low Voltage: 0.4 kV |
| Connection Group Label | Dyn11, Yyn0 |
| No-load Loss | 2360 W |
| Load Loss | 75℃: 23200 W |
| No-load Current | 0.11 |
| Impedance Voltage | 7% |
| Installation | Pad mounted |
General Characteristics
✅ This unit adopts excellent self-cooling and heat dissipation structure. It ensures a stable temperature rise control.
✅ By using an amorphous alloy core, it has a low self-loss.
✅ A key highlight of this model is that we use the 3D coil core technology. It boosts energy efficiency to a higher level and also results in lower sound.
✅ A sealed vacuum oil filling structure helps prevent oil leakage. Moisture and dust can’t come in.
Customized Service for 2500 kVA Transformers on Demand
✅ Energy Efficiency Standards: Customize Level 1, Level 2, or Level 3 energy efficiency based on user requirements.
✅ Scene-Specific Customization: Dry-type or fire-resistant oil solutions tailored to fire protection needs.
✅ High Voltage Side: 6-35kV, customized.
✅ Low Voltage Side: 400V, customized.
✅ Wiring Combinations: Dyn11, Yzn11, Yyn0 or others per your needs.
✅ Cooling System: Customized for your indoor and outdoor requirements.
✅ Compliance with Standards & Certifications: IEC, IEEE, CSA.
✅ Customization Level: For custom needs—such as special tapping ranges, increased short-circuit impedance, and additional online monitoring and communication interfaces—we can tailor the product to match specific project specifications.
Key Advantages of 2500 kVA Transformers for Industrial and Commercial Use
2500 KVA transformer supplied by Jinan Omek Electric Power Co., Ltd. provides sufficient rated capacity. It can handle inrush currents easily. This ensures continuous and stable power.
Its main and backup devices can be configured with flexibility. Being one of the big draw for the factories, commercial buildings and large facilities.

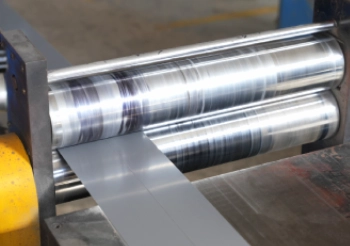

We use low loss silicon steel and amorphous alloy as the cores. When in 50%-70% load operation, efficiency can reach 99%.
Some of our types have OLTC installed, which can adjust the output voltage automatically. Improved power quality!

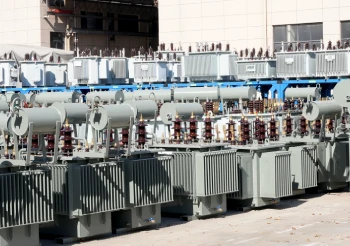

We supply cast resin dry type, oil immersed, pad mounted and other accessories. There is always one that can satisfy you.
Our high efficiency design helps you reduce you lots of costs. For clients that need more than 8000 hours. This is a visible saving.
Selecting a 2500 kVA transformer means reserving 20-30% spare capacity for load growth. This avoids expensive system upgrades later.
Production & Inspection Capabilities: The Foundation of Quality
Buy 2500 kVA Transfomer at Factory Price!
Get your 2.5 MVA transformer at unbeatable factory direct price. No middlemen and inflated costs!
If you have bulk purchases, we can provide you with extra volume discounts.
We combine stable product quality with factory efficient production. Help you reduce long term maintenance costs.
We have a short delivery cycle from our factory.
Shortened delivery cycles from our factory inventory also minimize your project waiting costs!
Applications
FAQs
Have any questions? We’re here to help you out.
Comply with IEC/IEEE/CSA standards. Ground the neutral point of the winding, use proper-sized grounding conductors, and ensure ground resistance meets local electrical codes for safety and fault protection.
In the long run, 2500kVA transformer drives 2000-2250 kW of electrical equipment, no problem! For short periods of time, it can carry 2750-3000 kW load, but it cannot be used frequently.
Why is its rated capacity 2500kVA, because this is its full load limit. For long-term use, you should leave a 10%-20% margin. Take a very simple example. It’s like you can’t keep your foot on the gas pedal while driving a car.
