China Transformer Substation Manufacturer
We are a leading compact package substation and substation transformer manufacturer in China. We are well aware that for projects from the Americas to Europe and Asia, they have distinct standards and preferences. Therefore, we specially designed 3 types of packaged substation to meet these varied demands.
Our package substations, also named as kiosk substations, includes: Chinese package substation, the space-efficient European package substation, and the widely adaptable American package substation.
Premium core components, all copper winding, high level of protection enclosure provides corrosion provention, ideal for long term outdoor use. The can be used in both the ring network and terminal distribution systems.
Package Substation Standard Technical Specifications
OMEK Power Chinese Box Type Substation
As a China transformer substation supplier, the Chinese box type transformer substation we produced is different from American and European box type transformer substations.
The unique R method high-voltage connection, which is the first in the industry, has China’s independent intellectual property rights, and fully demonstrates the extraordinary features of the Chinese box type transformer: safety, reliability, convenience, and environmental protection.
At present, it has been widely used in 35KV power transformation and distribution fields such as photovoltaic and wind power.
Model | JSJ-1000/35 | JSJ-1500/35 | JSJ-2000/35 |
Total power (kw) | 1000 | 1500 | 2000 |
AC input | (270V+270V) | ~800V | ~800V |
AC boost | 35KV~38.5KV | 35KV~38.5KV | 35KV~38.5KV |
High voltage switch cabinet | GGR-25A/40.5 | GGR-35A/40.5 | GGR-50A/40.5 |
Energy saving transformer | S11-1000KVAV35 | S11-1600KVA/35 | S11-2200KVAV35 |
Box transformer measurement and control | RS485 | RS485 | RS485 |
Overall dimensions | 3600x2430x2900 | 4300x3000x2900 | 4300x3000x2900 |
Weight(KG) | 6000 | 7000 | 8000 |
Six Highlights of the 35kV Chinese Box Type Substation
1. No need for oil filling or oil replacement: eliminates transformer maintenance troubles
2. No system outage required: power generation remains unaffected
3. No direct sunlight exposure: higher power generation efficiency
4. Transformer oil stays clean: ensures over 20 years of reliable operation
5. Safe and easy maintenance: operates normally even in harsh weather
6. Full insulation and thermal protection: natural ventilation for effective heat dissipation
OMEK Power American Style Package Substation
American Substation Structural Features
This compact substation has a front–rear cabinet design. The front part includes the HV/LV operation area with HV terminals, load break switch, tap changer, plug-in fuses, pressure relief valve, oil thermometer, and drain valve.
The LV section can provide easy cable connection.
The rear part is the oil tank. The transformer core, windings, HV load switch, and protection fuses are all inside the tank for safe and reliable operation.
OMEK Power American Box Substation Factory Live Shot
Take a look at our factory warehouse! These bell green units are pad-mounted transformer enclosures. They are just temporarily placed here and waiting to assemble with the transformer core and internal parts.
Performance Characteristics
1. Small size and compact structure, only about P/3 of the same capacity European-style box change;
2. Fully sealed, fully insulated, no insulation distance, and reliable personal safety;
3. It can be used in the ring network and can be used in the terminal. The conversion is very convenient and the reliability of the power supply is improved;
4. Low loss, lower than domestic S9 type transformer loss;
5. The cable connector can operate 200A load current, can be used as load switch in emergency situations, and has the characteristics of isolation switch; double fuse protection, reducing operating costs.
The fuse of the plug-in fuse is a double-sensitive fuse (temperature, current); ▲/Y is used. The connection method and the three-phase column structure have the advantages of high voltage quality, no drift of the neutral point, no heat generation of the cabinet, low noise, and good lightning protection.
OMEK Power European Style Box Type Substation
Name | Unit | High voltage electrical equipment | transformel | low voltage electrical equipment |
Rated voltage | A | 10 | 10/0.4 | |
Rated current | Hz | 630 | ||
Rated frequency | KVA | 50 | 50 | |
Rated Capacity | KA | 100~1250 | ||
Rated thermal stability current | KA | 20/45 | ||
Rated dynamic current (peak) | KA | 50 | ||
Rated short circuit current (peak) | KA | 50 | ||
Rated breaking short-circuit current | KA | 31.5 (fuse protector) | ||
Rated breaking load current | A | 630 | ||
1min power frequency withstand voltage | KA | to earth, phase to phase 42 | 35/28(5min) | |
Lightning impulse withstand voltage | KA | to earth, phase to phase 75 | 75 | |
Shell protection grade | IP33D/IP23D | |||
Noise level | dB | Oil transformer s55, dry transformer s65 | ||
Number of loops | 1~6 | 2 | 4~30 | |
Maximum reactive power compensation on the low voltage side | Kvar | 300 | ||
Structural Features

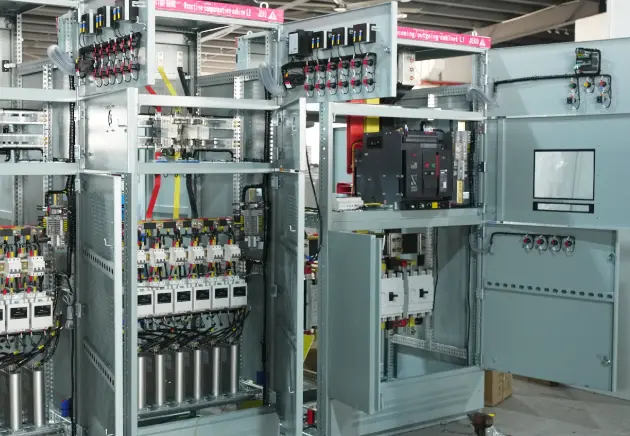

1. 3 components – HV switchgear, a transformer, and LV switchgear.
2. Compact HV chamber. All chambers have automatic lighting.
3. Natural and forced ventilation design. Air ducts and fans installed in the kiosk substation.
4. Color-coated steel. It can provide anti-corrosion and heat insulation.
OMEK Power Packaged Substation Solution
Fast installation
Our packaged substation arrives at your sites fully assembled. You can complete installation in a short time.
With our packaged substation solution, you don’t need to spend cost on building construction and labor. This saves your overall operation cost.
You can get a complete solution, such as high voltage + transformer + low voltage from OMEK company. Your project becomes easier to manage.
Each OMEK Power package substation is built with high protection levels. Each unit is under strict factory testing. All we do is to ensure stable and safe performance for you.
Why Choose Us as Your Compact Substation Supplier?
FAQ
Have any questions? We’re here to help you out.
Package substations is also called compact or prefabricated substations, electrical kiosk, etc. They are designed for rapid installation.
A package substation is fully assembled. You may think of it as a container. Its key components are HV switchgear, the distribution transformer, and LV switchgear. The factory will pre-wire and pre-test it, then install it within a single, robust enclosure.
You can commonly see it in urban power networks, public utilities, and real estate developments. Since these spaces are limited and a quick installation is also needed.
Common Types
– OMEK Power’s YBW-12/0.4 European-style package substation
– OMEK Power’s American-style compact substation
If you are interested in either of our models, contact us now! Our team is ready to support you.
A substation and a transformer are closely related but they are for different uses in power system.
A substation is a complete facility. It normally includes multiple transformers plus switchgear, protection devices, and metering equipment. It plays a role as a hub in the power grid. It is used to step down high voltage, distribute power, and provide system protection.
A transformer is always installed in a substation. Its job is simple and focused. It is mainly used to raise or lower voltage through electromagnetic induction. Unlike a substation, one transformer alone cannot complete power distribution, switching, or system protection. It is only one core component of a substation.
