OMEK Power 500kVA Pole Mounted Transformer
Jinan Omek Electric Power Co., Ltd. (OMEK Power) is a professional manufacturer of 500 kVA transformer. One of the 500kVA pole mounted transformer’s highlights is the robust and weather resistant body. It is very suitable for outdoor operations. It has compact structure and it’s easy to be installed.
This unit is safe, durable and easy to maintain. It has dependable performance in all environments.
Product Details
500 kVA Pole Mounted Transformer Key Features
OMEK™ 500 kVA rated capacity ensures stable output. Especially for small and medium power networks.
The air cooled system keeps the temperature rising below 65℃. That can minimize energy loss to the maximum extent.
Weather-resistant enclosure and corrosion-proof coating. It can handle rain, dust and drastic temperature changes.
This design can ensure better heat dissipation, and also makes convenient maintenance. Small size doesn’t need much space.
500 kVA pole mounted transformer uses copper as windings. A grain-oriented steel core can help to keep low noise.
Technical Specification
| Power Rating | 500kVA |
| Brand | OMEK POWER |
| Voltage Ratio | 11kV/433V |
| Cooling Type | Dry Type/Air Cooled |
| Transformer Type | DRY TYPE TRANSFORMER |
| Phase | Three Phase |
| Primary Voltage | 11 |
| Power | 500 kVA |
| Power Source | Electricity |
| Availability | In Stock |
- Insulation Fluid
- Gauges
- Pressure Relief Device
- Rapid Rise Relay
- Surge arresters
- Valves
- Protection Fuses
- Mount
Advantages of OMEK Power 500 kVA Pole Mounted Transformer
It can handle any weather. It works reliably no matter where you put it.
Power, always on. It keeps your grid rock solid, no matter rain or shine.
A real space saver. Compact size. You just need to mount it on the pole and you’re good.
Saving your cost. Low energy loss itself. The longer you use it, the more you save.
Built tough, easy upkeep. It is made to last for years with no more maintenance needed.
Safe and sturdy, anywhere. Whether it’s in the city or out in the countryside, it delivers steady power reliably.
Customized / Scope of Supply
Pick your design:
– Cast Resin Transformer – Best for fire safety and toughness.
– VPI Transformer – Great moisture protection, easy on the budget.
Handles big jobs:
– Power: Up to 5000 kVA
– Input: Up to 35 kV
Your Foundation of Reliability

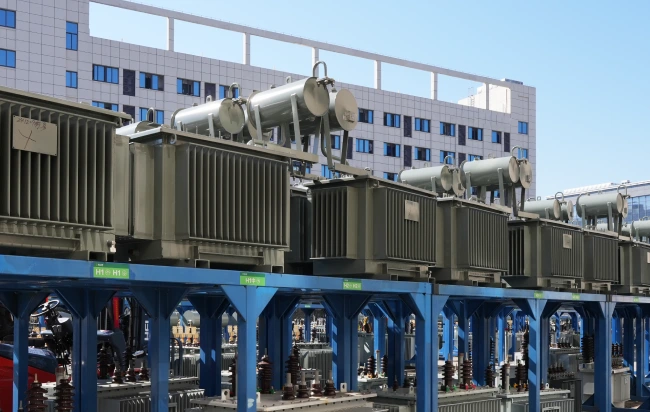

We will ensure every transformer passes complete tests before leaving our factory. Our zero failure rate is not something we just say, its our action and results of following strict IEC and ANSI standards.
- 1. We will examine the 500 kVA pole mounted transformer’s Qualification Certificate.
- 2. Oil level gauge and breather examination
- 3. To inspect the high and low voltage bushings and wiring.
- 4. Make sure the tap changer is set to the right position
- 5. We will also ensure the lightning arrester is fully installed.
- 6. Verify the grounding resistance test results is qualified
- 7. Ensure no abnormal deformation and discharge marks for the cables and busbars.
Get a Quote
Special Orders – Special Requirements
Are you looking for something customized or special? Just feel free to contact us for a free consultation. If what you require isn’t in our options list, don’t worry. Our documentation only includes standardized variants. Our engineers and designers will work together to study out a perfect solution for your project! They get more engineered solutions!

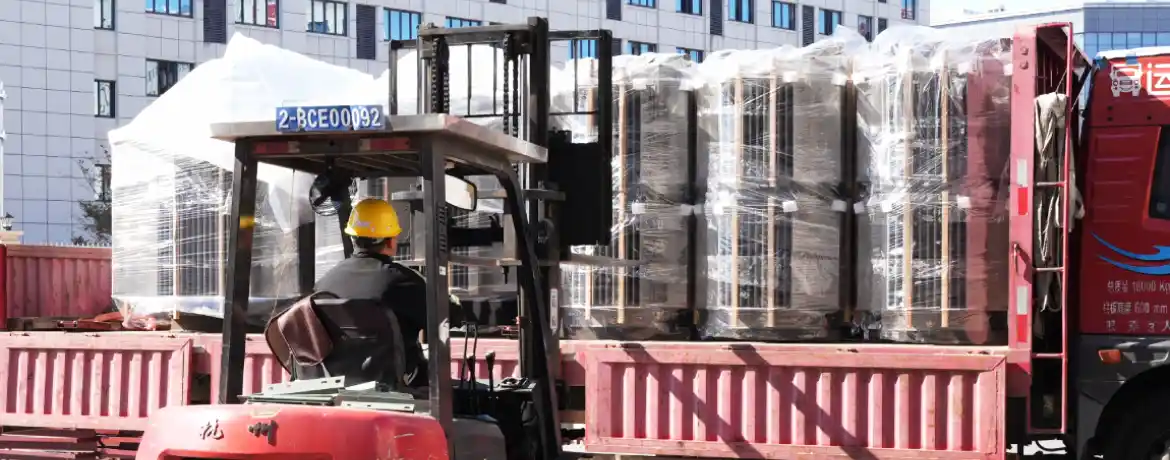

Packing and Delivery
Application Areas of 500 kVA Pole Mounted Transformer
It supports street lamps, traffic signals, and public facilities.
Such as temporary construction sites and outdoor events.
Connect medium voltage lines to low voltage utility networks to ensure reliable local distribution.
It supplies stable electricity to houses and small communities.
FAQs
Have any questions? We’re here to help you out.
The 500 kva pole mounted transformer’s dimension is vary for different manufacturers. Also, for a certain manufacturer, a 500 kva pole mounted transformer has different dimensions due to their energy efficiency and materials. For OMEK, we have the dimensions for the 500 kva pole mounted transformer as below.
SH25-M-RL-500/10 3 phase oil immersed amorphous alloy 3D core distribution transformer: 1770 * 1200 * 995
S13-M-RL-500/10 3 phase oil immersed 3D core distribution transformer: 1320 * 1140 * 1325
SCB10-RL-500/10 3 phase dry type 3D core distribution transformer: 1245 * 1400 * 1380
If you need other dimension specifications, feel free to contact us.
There’s no problem for a 500 kVA pole mounted transformer to promote 400 KW electric equipment. But remember don’t let the 500 kVA pole mounted transformer run overload for a long time.
The weight of the 500kVA pole mounted transformer is vary based on different factors.
For example, for a 500kVA 3 phase oil type pole mounted transformer, the weight is 1505 kg. However, for a 500kVA 3 phase dry type pole mounted transformer, the weight is 1450 kg.
Each style and design leads to different weights. Try to contact our engineer for a specific weight to see if we can satisfy you.
Based on our experience in rural projects, generally, a 500 kVA pole mounted transformer can serve about 350 houses. If in the summer, the weather is hot. All the air conditioners were turned on at the same time, 250 households can be handled.
Commonly, the 500 kVA is the most popular rated capacity. Other models, such as 200kVA, 315kVA and 630kVA are also very common.
