100 kva Transformer Factory with 17 Years of History
We are a premier distribution transformer supplier based in China. We manufactured a wide range of rated capacities, from 30 kVA to 10000 kVA. Among them, our 100 kVA transformers have top-tier energy efficiency. They are most suitable for small and medium scale operations.
OMEK 100 kVA transformers can be designed as single phase as well as three phase types. In addition, if you have a specific installment requirement, such as pole mounted or pad mounted types, we also have the ability to cater for your needs.
Since 2009, we have gained more and more good evaluations from clients worldwide. They showed how well our 100 kVA transformers operated in their projects, and how much cost we have saved for them.
Why Customers Trust Us
1. We have ISO and CE/CQC certified. Our 100 kVA transformer’s stable performance and strong overload capability have left our customers with deep impression.
2. We are always aiming at innovation for energy-efficient transformers to help our clients reduce operating costs.
3. Our products are safe and environmentally friendly. For example, for oil-filled type, we use anti-leakage design. Low noise is another good characteristic for the 100 kVA transformer.
4. From your equipment selection to installation. We provide reliable warranty and full technical support for you.
5. Our products have long-term value. Energy savings over the years reduce your total cost.
See our Spanish page: Transformador de 100 kVA
100 kva Transformer Details
100 kVA Dry Type Transformer Specification
| Brand | OMEK Power |
| Phase | 3 Phase |
| Type | Dry Type |
| Primary Voltage | 6kV/6.3kV/6.6kV/10kV/10.5kV/11kV/ 20kV/22kV/24kV/ 35kV/36kV/37kV/38.5kV (Customizable) |
| Cooling Type | AN/AF |
| Secondary Voltage | Customizable |
| Frequency | 50/60 Hz (customizable) |
| Winding Material | Copper / Aluminum / Copper-Aluminum / Copper Foil |
| Vector Group | Dyn11, Yyn0, Yzn11 |
| Impedance Voltage (%) | 4.0 |
| Tap Range | ±2*2.5, ±5 |
| No Load Loss | As low as 0.06kW (Customizable) |
| On Load Loss | 1.08kw (75℃） |
| Accessories | Standard Configuration |
| Remarks | N/A |
We offer a wide range of customizable 100 kVA transformers — a diverse selection to match your exact needs:
✅ 100 kVA pole mounted transformer
✅ 100 kVA dry type transformer
✅ 100 kVA 3 phase transformer
✅ 100 kVA single phase transformer
✅ 100 kVA pad mounted transformer
✅ 100 kVA single phase pad mounted transformer
✅ 100 kVA 3-phase isolation transformer
✅ 100 kVA liquid filled transformer (with new liquid insulating materials)
Product Selection Per Your Needs
If you have specific requirements for load capacity or rated capacity, please refer to the table below and provide us with your parameters. Our engineers will promptly deliver a customized design solution.
SCBH19-(30-2500)/10
SCBH19-(30-2500)/10 3 phase Dry type amorphous alloy iron core distribution transformer
| Rated capacity(kVA) | Voltage combination | Connected group label | No-load loss (W) | Load loss (75°C)(W) | No-load current (%) | Impe-dance voltage（%） | Sound Level(dB) | Overall dimension(L×w×h) | Total weight (kg) | ||||
| High voltage (kV) | Tap range | Low Voltage (kV) | 130°C(B) | 155°C(F) | 180°C(H) | ||||||||
| 100°C | 120°C | 145°C | |||||||||||
| 30 | 6 6.3 6.6 10 10.5 11 | ±2×2.5 ±5 | 0.4 | Dyn11 | 50 | 605 | 640 | 685 | 0.6 | 4 | 63 | 900×900×800 | 300 |
| 50 | 60 | 845 | 900 | 965 | 0.5 | 955×900×900 | 350 | ||||||
| 80 | 85 | 1160 | 1240 | 1330 | 65 | 985×950×960 | 400 | ||||||
| 100 | 90 | 1330 | 1415 | 1500 | 1035 × 1250×980 | 450 | |||||||
| 125 | 105 | 1565 | 1665 | 1780 | 0.4 | 66 | 1060×1280×1000 | 500 | |||||
| 160 | 120 | 1800 | 1915 | 2050 | 1120×1320×1050 | 680 | |||||||
| 200 | 140 | 2135 | 2275 | 2440 | 67 | 1135 ×1330×1105 | 770 | ||||||
| 250 | 160 | 2330 | 2485 | 2665 | 1170×1330×1165 | 900 | |||||||
| 315 | 195 | 2945 | 3125 | 3355 | 0.3 | 69 | 1185×1360×1225 | 1010 | |||||
| 400 | 215 | 3375 | 3590 | 3850 | 1210×1380×1300 | 1205 | |||||||
| 500 | 250 | 4130 | 4390 | 4705 | 70 | 1245 × 1400 × 1380 | 1400 | ||||||
| 630 | 295 | 4975 | 5290 | 5660 | 71 | 1295 ×1410×1355 | 1515 | ||||||
| 630 | 290 | 5050 | 5365 | 5760 | 0.3 | 6 | 71 | 1295×1410×1355 | 1515 | ||||
| 800 | 335 | 5895 | 6265 | 6715 | 71 | 1375×1450×1480 | 1880 | ||||||
| 1000 | 385 | 6885 | 7315 | 7885 | 0.2 | 1430×1480×1525 | 2170 | ||||||
| 1250 | 455 | 8190 | 8720 | 9335 | 74 | 1480×1500×1570 | 2525 | ||||||
| 1600 | 530 | 9945 | 10555 | 11320 | 75 | 1500×1520×1710 | 2980 | ||||||
| 2000 | 700 | 12240 | 13005 | 14005 | 77 | 1570×1550×1735 | 3480 | ||||||
| 2500 | 840 | 14535 | 15445 | 16605 | 78 | 1625×1600×1825 | 4080 | ||||||
100 kVA 3 Phase Transformer Main Components
Our advanced amorphous 3D wound core grants our 100 kVA transformer of 3 phase with higher mechanical strength and lower vibration.

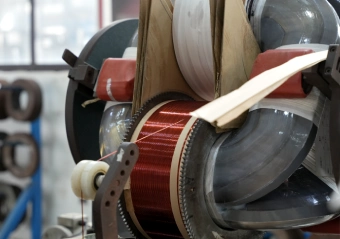

We can offer copper/aluminum/copper-aluminum/copper foil options. Copper windings especially have the highest efficiency.
They are made of high purity copper. The advantage is they are helpful in lowering losses and getting long term ecomomic efficiency.

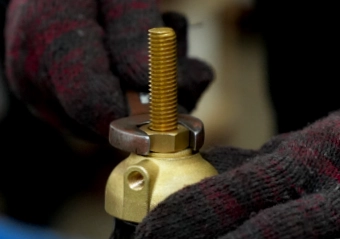

All our bushings of our 100 kVA 3 phase transformers are made of high strength porcelain. In this way, the electrical insulation can surely be reliable.

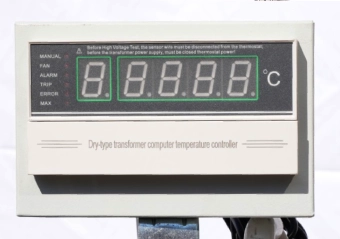

For the dry type transformer, this system is to help supervise the coil temperature in real time. It can prevent overheating and improve operational safety.
The off-circuit tap changer adjusts voltage when the transformer is powered off. It can keep the low voltage output stable.
By using the on-load tap changer, voltage adjustment can be made without shutting down the transformer.
For the enclosure’s materials, we have steel, aluminum alloy, and stainless steel to choose from. It can be customizable per your request.
100 KVA Transformer Superior Performance
Excellent Dust Protection
IP20 and higher enclosures. Dust and foreign objects can’t go into the transformer.
Outstanding Heat Resistance
We adopt F-class or H-class insulation. The transformer can withstand higher operating temperatures.
Strong Shock Loads Handling
The 100 KVA transformer has higher mechanical strength and robust short-circuit resistance.
Easy Maintenance
Complete protection system, such as gas relay and temperature controller help simple the maintance work for you.
Space-saving Power Distribution Solution
100 kVA Pole Mounted Transformer
1. Compact cantilever design. It saves installation space, helping you solve site selection challenges.
2. High-permeability silicon steel core and low-resistance windings. They help reduce no-load and load losses, helping you cut long-term power costs.
3. Strong mechanical structure and anti-aging insulation ensure stable operation in tough conditions, reducing failures and maintenance costs for you.
4. Widely used in urban grids, industrial parks, and high-rise buildings, providing you an efficient power distribution solution with pole mounted transformers.
Emergency Power Solution
100 kVA Pad Mount Transformer
1. Designed and manufactured to meet IEC, ANSI, and DOE 2016 standards, giving you a reliable and safe product.
2. Pre-installed and factory-tested; on-site wiring only.
3. Outdoor-rated enclosure with rain, dust, and corrosion protection.
Clean Power Solution
100 kVA Isolation Transformer
1. Electromagnetic isolation: the primary and secondary coils are fully insulated.
2. Provides pure power: this isolation transformer can output low harmonics. It ensures your labs, medical equipment, and servers get clean power.
3. Safe guard. Output-to-ground faults. This design does not cause shocks.
4. It is ideal for data centers, medical imaging, precision manufacturing, and automation.
What sets OMEK Power apart？
- Strong Expertise in Advanced Core Technologies
Our group specializes in 3D wound cores, amorphous alloy cores, and 3D amorphous core transformers.
Certified to International Quality StandardsWe meet ISO9001, ISO14001, ISO45001
CCC, CQC, PCCC energy-saving certification, and AAA Credit Rating.
High-Tech & Innovation-Driven ManufacturerWe are awarded as a National High-Tech Enterprise, Provincial “Specialized & Innovative SME”, Top 100 Growth Tech Enterprise, and Green Factory.
Contributing to Industry DevelopmentWe lead 10 national and industry standards. It demonstrates our role as a technology leader in China’s transformer industry.
Try to Contact Us
Want to experience our high performance 100 kVA transformer and efficient communication? Try to contact us for a quick quote. Our team can get back to you within 24 hours during our business hours.

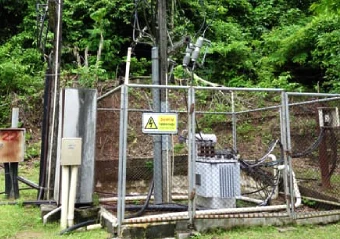

Our 100 kVA Transformer Common Applications
Good Reviews from Our Customers
Country: Pakistan
Customer: Asim …We bought 100 kva 11kv 400v transformer from Omek. It has been running non-stop for 3 years in Sindh’s 50°C heat, there’s zero capacity drop.
Country: South Africa
Customer: Kgosi …Monkeys in Johannesburg caused short circuits in our old transformers. We bought 7 units of 100 kVA overhead distribution transformers.
Country: Nigeria
Customer: Chinedu…Later, We installed OMEK’s medical-grade isolation transformers for our Lagos hospital ICU. Our sensitive medical monitors runs well for now.
Country: India
Customer: Vihaan…These 3ph copper transformers effortlessly handle massive startup surges. The lower energy loss saves us money every month.
FAQs
Have any questions? We’re here to help you out.
OMEK Power offers both oil-cooled and air-cooled 100 kVA transformer. We understand it can be hard to choose. Here is a simple guide to help you decide.
Factor | condition | Suggestion | Reason |
Installation location | high-occupancy indoor areas | air-cooled | Fire safety is the top concern. Air-cooled transformers use non-flammable materials and have no oil-leak risk. |
Outdoor | oil-cooled | Best for poles, outdoor cabinets, or rural areas. Oil-cooled transformers have lower cost and better cooling. | |
Inside factory workshops | It depends | If conditions are dusty, wet, or high-temperature, choose oil-cooled. If the workshop is clean and fire safety is required, the air-cooled is ok. | |
Budget | Looking for the best price-performance ratio | oil-cooled | Lower purchase and running costs. |
Budget is sufficient and safety is the priority | air-cooled | Safer, low fire risk, easier maintenance. | |
Maintenance | Professional team available | Both are suitable | Professionals can check oil level, oil quality, or cooling fans. |
Prefer minimal maintenance | Air-cooled | Only need to keep the unit clean and dry; no oil checks needed. |
Based on OMEK’s actual practical experience, a 100 kVA transformer can supply about 24 houses.
OMEK Power 100 kVA transformers weight and dimention comparison
| No. | Capacity | Phase | Type | Core Technology | Dimention/Size | Weight (kg) |
| 1 | 100 kVA | Three-Phase | Oil-Immersed | Amorphous Alloy 3D Core | 1230*640*875 | 585 |
| 2 | 100 kVA | Three-Phase | Oil-Immersed | 3D Core | 890*795*1005 | 490 |
| 3 | 100 kVA | Three-Phase | Oil-Immersed | Amorphous Alloy Iron Core | 860*600*860 | 440 |
| 4 | 100 kVA | Three-Phase | Dry-Type | Amorphous Alloy Iron Core | 1035*1250*980 | 450 |
| 5 | 100 kVA | Three-Phase | Dry-Type | 3D Core | 1060*1210*960 | 560 |
