Reliable, Efficient 2000 kVA Transformer
OMEK 2000 kVA transformer has dry type, oil-immersed types, as well as pad mounted and substation designs.
We also offer various series for you to choose from. They are silicon steel series, amorphous alloy series and 3D roll core series.
All of the 2000 kVA transformer types meet the IEC standards. They are safe, reliable and have higher efficiency. Choose OMEK’s 2000 kVA transformer also saves you cost and troubles!
If you are looking for a safe and reliable 2000 kVA transformer manufacturer, we sincerely welcome you to visit our factory. You will get our direct factory price!
2000 kVA Transformer Specification
Below are the general specifications of our 2 MVA transformer for your reference. For more detailed specification, such as the panel, shell or accessaries, please send us your technical data requirements, and we will provide you a detailed proposal with brochures and drawings for your evaluation.
General Specifications
| Brand | OMEK Power |
| Product Name | 2000 kVA Transformer / 2 MVA Transformer |
| Transformer type | Oil type; dry type |
| Network type | AC |
| Standards | CE, IEC, IEEE, ISO, ASTA |
| Type of installation | Indoor/outdoor |
| Maximum altitude | < 1000 m |
| Cooling mode | ONAN, ONAF, AN, AF |
| Winding material | Copper or aluminum (per your needs) |
| Degree of protection | IP00 corrugated IS 2099 IP00 corrugated IS 3347 |
| Mounting mode | Pad mounted type |
| Phase | 3 Phases |
| Rated power | 2000 kVA |
| Rated frequency | 50 Hz/60 Hz |
| Rated primary voltage | 35 kV |
| Secondary voltage ( at no-load) | 400 V (customizable) |
| Vector group | Dyn11/Yyn0 |
| Tap range | ±2*2.5；±5 |
| Impedance Voltage | 5.00% |
| Maximum ambient temperature | 50 °C, suitable for tropics |
| Ambient air temperature for operation | -6…50 °C |
| Ambient air temperature for storage | -6…50 °C |
| Fire certificate | Level 2 |
2000 kVA Dry Type Transformer
The 2000 KVA distribution transformer of dry type is made with cast resin coil windings. Its key feature is safe and durable. The whole includes stainless steel enclosure, fan, temperature control system. It can meet first-level energy efficiency.
Below is our star product. If you have other specific requirements, we can fully customize them to satisfy you.
2000 kVA 3 phase Dry Type Transformer SCB18-2000/10 ⭐⭐⭐⭐⭐
Main Technical specifications | Value/Information |
Rated capacity | 2000 kVA / 2 MVA |
Voltage Combination | 10/0.4 kV |
High voltage | 10 kV |
Tap range | ±2 × 2.5%; ±5 |
Low voltage | 0.4 kV |
Connected group label | Dyn11 |
No-load loss | 1760 W |
2000 kVA 3 phase Dry Type Transformer SCB18-2000/10 ⭐⭐⭐⭐⭐
Load loss (different insulation grades) | 130℃ (B) / 100℃: 12240 W; 155℃ (F) / 120℃: 13005 W; 180℃ (H) / 145℃: 14005 W |
No-load current | 0.20% |
Impedance voltage | 6% |
Sound level | 69 dB |
Dimension (L × w × h) | 1840 × 1990 × 1475 |
Total weight | 4595 kg |
Price | ≥$21,000 |
2000 kVA Oil Filled Transformer
The 2000 kVA transformer of oil type has a 3 phase design. Three different energy efficiency levels for your needs. The common models includes S13, S20 and S22. It has super heat dissipation ability, and suitable for places with high ground temperatures.
2000 kVA 3 Phase Oil Immersed Transformer S22-M-2000/10 ⭐⭐⭐⭐⭐
Main Technical specifications | Value/Information |
Rated capacity | 2000 kVA |
Voltage Combination | 10/0.4 kV |
High voltage | 10 kV |
Tap range | ±2 × 2.5%; ±5 |
Low voltage | 0.4 kV |
Connected group label | Dyn11 |
No-load loss | 1760 W |
2000 kVA 3 Phase Oil Immersed Transformer S22-M-2000/10 ⭐⭐⭐⭐⭐
Load loss (different insulation grades) | 130℃ (B) / 100℃: 12240 W 155℃ (F) / 120℃: 13005 W 180℃ (H) / 145℃: 14005 W |
No-load current | 0.20% |
Impedance voltage | 6% |
Sound level | 69 dB |
Dimension (L × w × h) | 1840 × 1990 × 1475 |
Total weight | 4595 kg |
Price | $21000 and up |

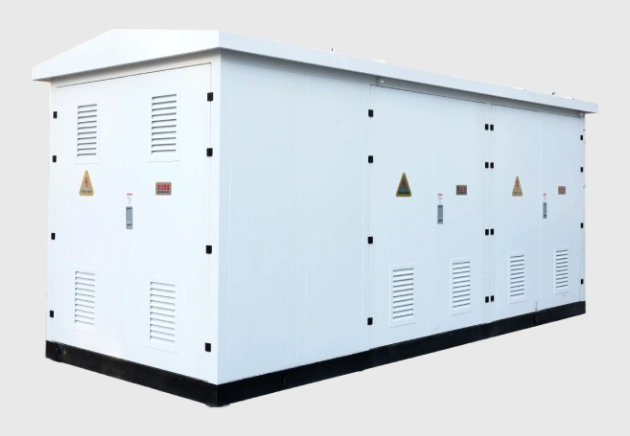

2000 kVA Compact Substation
OMEK provides full coverage of box transformers: Chinese-type, European-type, and American-type compact substations.
It includes a high-pressure chamber and a low pressure chamber. Steel plate with powder-coated shell.
| Specification | Data |
| Model | JSJ-2000/35 |
| Power | 2000 kW |
| High-voltage switch board | GGR-50A/40.5 |
| Energy-saving model | S11-2200KVA/35 |
| Measurement and control | RS485 |
| Dimension | 4300 × 3000 × 2900 mm (length*width*weight) |
| Weight | about 8000 kg |
2000 kVA Transformer – Powerful & Reliable for Your Facility
OMEK 2000 kVA transformers can provide stable power support for heavy machinery, lighting systems, and office equipment.
Designed with an expansion heat radiating area, they can keep good operation condition under high load.
Its core components use high quality materials, such as high-permeability material, thickened copper bar. With a 30-year life span.
Transformer with a large capacity 2000 kVA provides voltage step up. Suitable for high and medium voltage power transmission with lower energy losses.
Customizable size of the heat sink makes its temperature rise standard lower than the national standard. It can meet the needs for areas with high temperatures.
Why Choose Our 2000kVA Transformer
Don't Hesitate to Upgrade Your Power System
OMEK Power starts business from bringing value to our customers. Our high efficiency 2000 kVA transformers are designed to reduce your electricity bills, provide more safer distribition, easy maintaince and reassuring. Choose our high efficiency 2000 kVA solutions!
Talk to OMEK Power’s energy efficiency experts. They will customize the right solution for your site.
Application
FAQs
Have any questions? We’re here to help you out.
A 2000 kVA transformer is a medium-to-high capacity power transformer. It has 2000 kVA of apparent power. It have the functions below.
– Supply stable electricity for medium factories, commercial centers, and industrial parks
– Step up or step down voltage for power distribution and transmission
– Support long distance power delivery due to its high efficiency and low loss
Where can it be used?
The 2 MVA transformers are commonly used in the following applications.
– Manufacturing plants
– Water treatment plants
– Commercial buildings
– Communities / industrial zones
– Renewable energy and utility projects
Key advantages of transformer 2000 kva
– It is reliable to handle heavy and continuous loads
– It is suitable for long-distance power transmission
– It is reliable for both step-up and step-down applications
This is based on the voltage.
Below are the current at common voltage levels for your reference.
Common voltage | formula | current amps |
0.4 kV (low voltage side) | 2000 kVA × 1000 ÷ (400 V × √3) | 2887 A |
10 kV (high voltage side) | 2000 kVA × 1000 ÷ (10000 V × √3) | 115.5 A |
20 kV (high voltage side) | 2000 kVA × 1000 ÷ (20000 V × √3) | 57.7 A |
Regarding the 2000 kva transformer oil capacity, it mainly depends on the transformer type.
The 2000 kVA transformer with an amorphous alloy core will have a larger amount of oil than the silicon steel core transformer. Because the amorphous alloy transformer has a lower magnetic saturation density. In order to go through magnetic flux of the same magnitude, the 2000 kVA amorphous alloy transformer needs a core with a larger cross-sectional area. Thus, it leads to a higher amount of oil.
For OMEK’s 2000 kva transformer, each unit will show an insulation liquid weight on the nameplate. You can refer to the data on the nameplate for reference.
