OMEK Power 20kV Transformer Details
Product Overview
✅ Compared to 10kV transformers, it can significantly enhance power supply capacity in medium-voltage grids, enabling longer power transmission distances.
✅ Full capacity coverage: compatible with all rated capacities up to 10 MVA.
✅ Flexible customization: low-voltage side voltage can be customized (e.g., 10 kV / 0.4 kV).
✅ Multiple efficiency options: three energy efficiency levels available, tailored to your requirements for no-load and load losses.
✅ Models: S11/S20/S22 Series
✅ Primary Voltage: 20kV
✅ Secondary Voltage: 10 kV / 0.4 kV etc.
✅ Tapping Range: ±2 × 2.5%
✅ Vector Group: Dyn11, Yyn0 (or others)
✅ Frequency: 50Hz, 60Hz.
✅ Oil type (oil type transformer): 25# (or 45#) transformer oil, or vegetable-based ester oil
OMEK Power 20kV Three-phase oil-immersed transformer Specification
S11-M-(30-2500)/20kV
3 Phase Oil Immersed Distribution Transformer
| Rated capacity(kVA) | Voltage combination | Connected group label | No-load loss (W) | Load loss (75°C)(W) | No-load current (%) | Impe-dance voltage（%） | ||
| High voltage (kV) | Tap range | Low Voltage (kV) | ||||||
| 30 | 20 | ±2×2.5 ±5 | 0.4 (can be customized) | 30-500kVA: Dyn11, Yzn11, Yyn0
630-2500kVA: Dyn11, Yyn0 | 100 | 690/660 | 0.3 | 30-500kVA: 5.5
|
| 50 | 130 | 1010/960 | 0.24 | |||||
| 63 | 150 | 1200/1150 | 0.23 | |||||
| 80 | 180 | 1440/1370 | 0.22 | |||||
| 100 | 200 | 1730/1650 | 0.21 | |||||
| 125 | 240 | 2080/1980 | 0.2 | |||||
| 160 | 290 | 2540/2420 | 0.19 | |||||
| 200 | 340 | 3000/2860 | 0.18 | |||||
| 250 | 400 | 3520/3350 | 0.17 | |||||
| 315 | 480 | 4210/4010 | 0.16 | |||||
| 400 | 570 | 4970/4730 | 0.16 | |||||
| 500 | 680 | 5940/5660 | 0.16 | |||||
| 630 | 810 | 6820 | 0.15 | 630-2500kVA: 6.0 | ||||
| 800 | 980 | 8250 | 0.15 | |||||
| 1000 | 1150 | 11300 | 0.14 | |||||
| 1250 | 1380 | 13200 | 0.13 | |||||
| 1600 | 1660 | 16000 | 0.12 | |||||
| 2000 | 1950 | 19100 | 0.11 | |||||
| 2500 | 2340 | 22200 | 0.11 | |||||
20kV Transformer Product Features
Made of 0.35–0.5 mm thick silicon steel sheets; amorphous alloy core available for higher efficiency

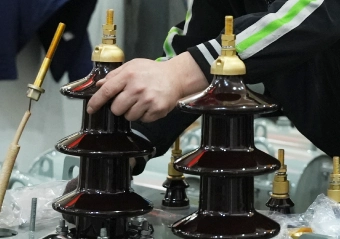

Ceramic material, excellent mechanical strength, low partial discharge, effectively preventing breakdown
Four-sided corrugated design ensures uniform heat dissipation, and improve performance
10kV vs 20kV
10kV and 20kV transformers are suitable for different power grids. If your power grid is 10kV, you should choose a 10kV transformer; if it is 20kV, you must choose a 20kV transformer.
In some areas with heavy power loads, using a 10kV transformer may lead to insufficient power supply capacity, low power quality, increased number of lines, and large occupation of space. In such cases, a 20kV transformer is an ideal choice.
20kV transformer is very ideal for new construction or upgrading of power distribution systems!
20kV Transformer Power Distribution Solution
One of the main applications of 20kV transformers is in data centers. Due to the significant growth in AI computing power requirements, the load density of data centers is increasing. To satisfy this necessitating expansion, the 20kV power distribution solution is an ideal choice to address this challenge.
Here is the 20kV transformer power distribution solution provided by OMEK Power for a 6-story data center with a total electricity load of approximately 18,000kW.
If you are also facing expansion or new planning, please feel free to contact us at any time to discuss your customized power distribution plan!
Try to Contact Us
Want to experience our 22kV transformer solutions? Try to contact us for a quick quote. Our team can get back to you within 24 hours during our business hours.
