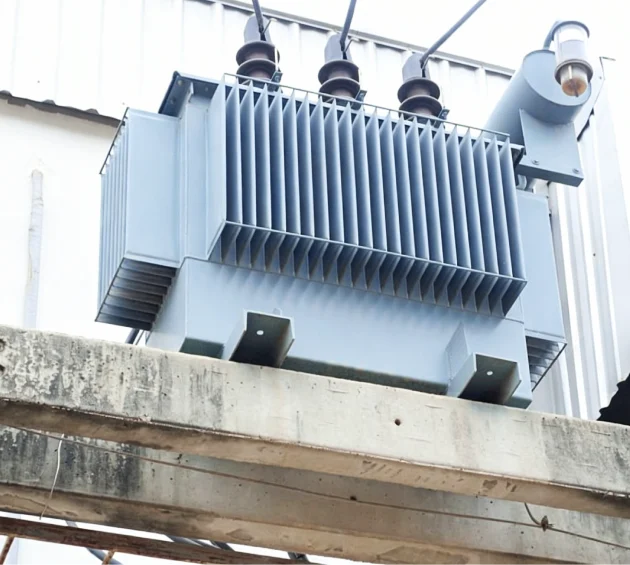

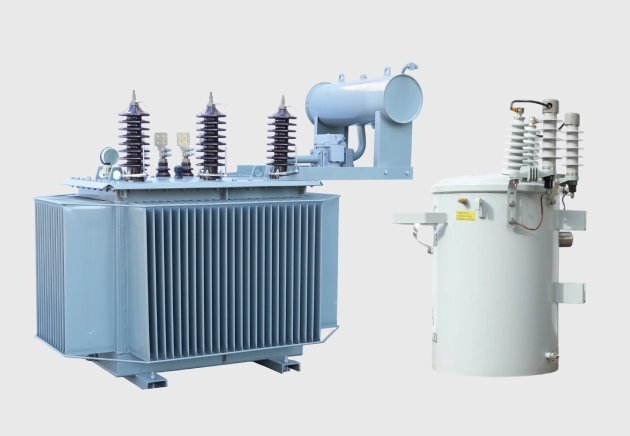

OMEK Power 33kV Transformer Overview
Input Voltages (Primary):——33kV
Output Voltages (Secondary):—— 11kV/440V/415V/400V/230V (Three-Phase/Single-Phase).
Common Vector Group: Dyn11, Yzn11, Yyn0
Copper winding
No-Load Loss (W)—–100 W to 2340 W (based on the rated capacity)
Load Loss (75°C/W)———–refer to the specification details
OMEK Power 33kV transformers are manufactured in compliance with IEC, ISO and ASTA standards, and hold CE certification.
Scope of Supply
OMEK Power manufactures 33kV transformers from 50kVA to 10,000kVA.
We have exported 33kV transformers of 2500kVA to commercial infrastructure projects in Kazakhstan, and 33/415V transformers of 1000kVA for small business parks.
OMEK Power manufactures custom 33kV transformers. Depending on your local grid standards and project requirements, it can be designed to step down voltages below for medium voltage distribution networks.
| Primary | Secondary |
|---|---|
| 33kV | 11kV |
| 33kV | 6.6kV |
| 33kV | 3.3kV |
| 33kV | 415V |
| 33kV | 400V |
| 33kV | 440V |
33kv transformer specifications
33kv/415V 4000kVA Onan Dyn11 3 Phase Distribution Oil Type Transformer
| Rated capacity (kVA) | Voltage combination | Connected group label | No-load loss (W) | Load loss (75℃) (W) | No-load current (%) | Impedance voltage (%) | ||
|---|---|---|---|---|---|---|---|---|
| High voltage (kV) | tap range(%) | Low Voltage (kV) | ||||||
| 50 | 33 | ±2×2.5 ±5 | 0.4 | Dyn11 Yyn0 | 160 | 1200/1140 | 0.24 | 6.5 |
| 100 | 230 | 2010/1910 | 0.21 | |||||
| 125 | 270 | 2370/2260 | 0.20 | |||||
| 160 | 280 | 2820/2680 | 0.19 | |||||
| 200 | 340 | 3320/3160 | 0.18 | |||||
| 250 | 400 | 3950/3760 | 0.17 | |||||
| 315 | 480 | 4750/4530 | 0.16 | |||||
| 400 | 580 | 5740/5470 | 0.16 | |||||
| 500 | 680 | 6910/6580 | 0.16 | |||||
| 630 | 830 | 7860 | 0.15 | |||||
| 800 | 980 | 9400 | 0.15 | |||||
| 1000 | 1150 | 11500 | 0.14 | |||||
| 1250 | 1400 | 13900 | 0.13 | |||||
| 1600 | 1690 | 16600 | 0.12 | |||||
| 2000 | 1990 | 19700 | 0.11 | |||||
| 2500 | 2360 | 23200 | 0.11 | |||||
OMEK Power 33kv transformer parts

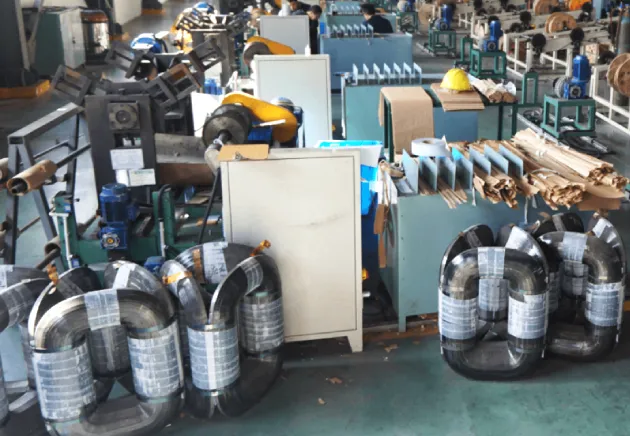

You have multiple core options: amorphous 3D core – strong and stable, low noise; silicon steel 3D core – remarkable energy savings

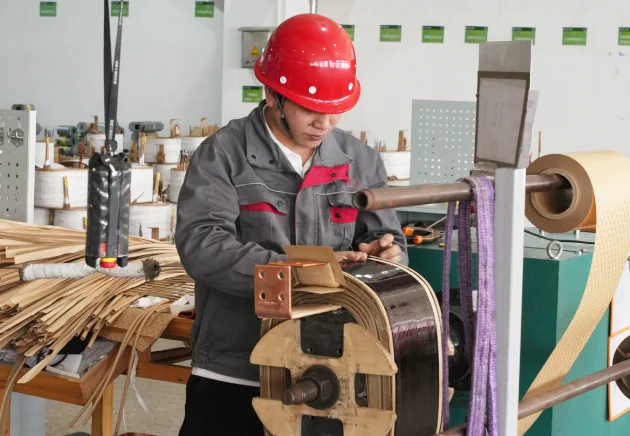

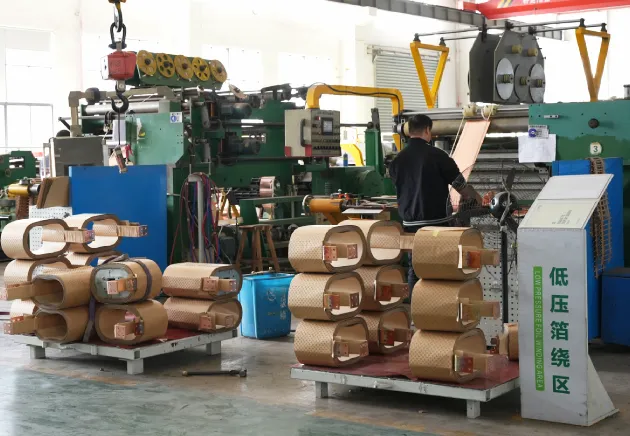

OMEK’s copper materials all come from state-owned professional copper-based industrial park. The copper coils are with high purity and high quality. Cost is lower.

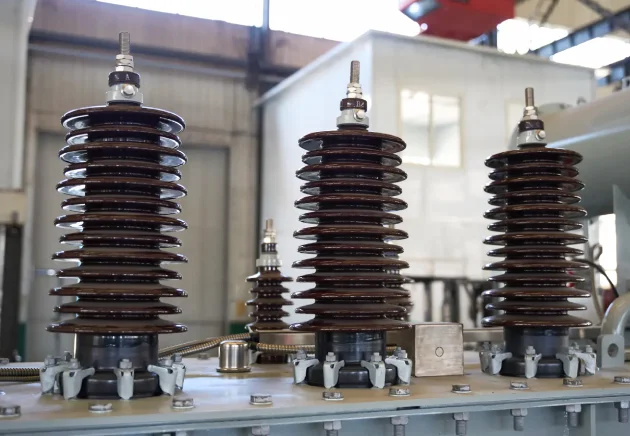

Higher insulation margin, excellent resistance to outdoor environments. Fully sealed structural design, reduces the risk of leakage and moisture ingress.

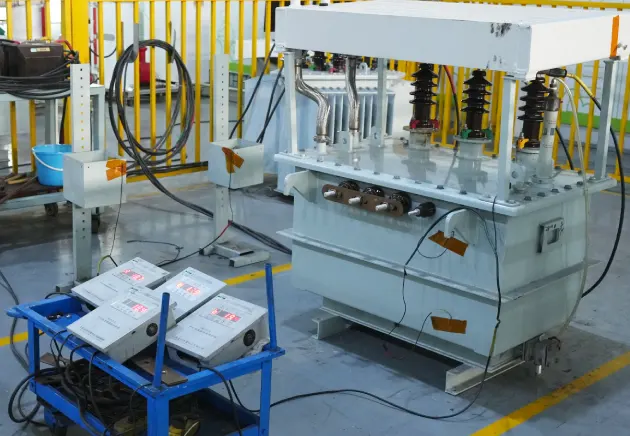

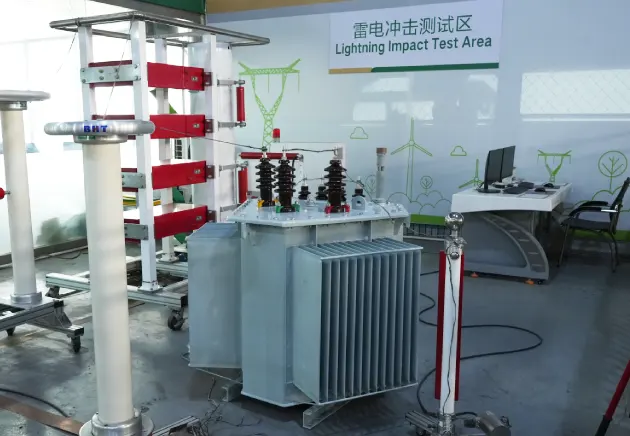

OMEK Power 33kv transformer testings
As a professional transformer manufacturing enterprise in China, OMEK Power conducts routine tests on every product leaving the factory, and performs type tests on new models and customized products for customers. OMEK also verifies the special tests of transformers under specific working conditions.
Each transformer launched on the market by OMEK Power has long-term operational reliability!

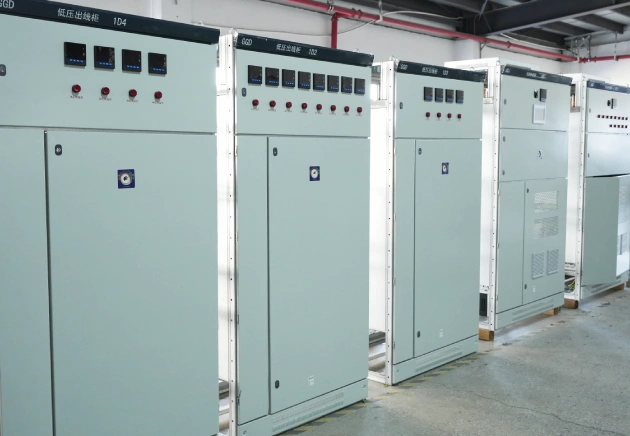

33kV Transformer Power Distribution Solution
OMEK Power not only manufactures transformers, but we are also experts in providing one-stop power distribution solutions.
From 33kV high voltage to 11kV low voltage or other low voltages, all box transformers, switch cabinets, compensation cabinets, branch boxes, metering boxes are all produced by us.
Whether you need an outdoor compact type or multiple circuit branches, we will tailor a complete 33kV power distribution solution for you!
Start Your 33kV Power Distribution Project with OMEK Power!
Are you looking for a reliable and high-quality long-term cooperative transformer manufacturer?
Welcome to visit the OMEK Power factory in China! I believe our automated production workshop, raw material origin copper base industrial park and a full set of power distribution equipment will leave you a deep impression!
Immediately contact OMEK Power, access to exclusive 33 kv Power distribution solutions and professional technical quotation!

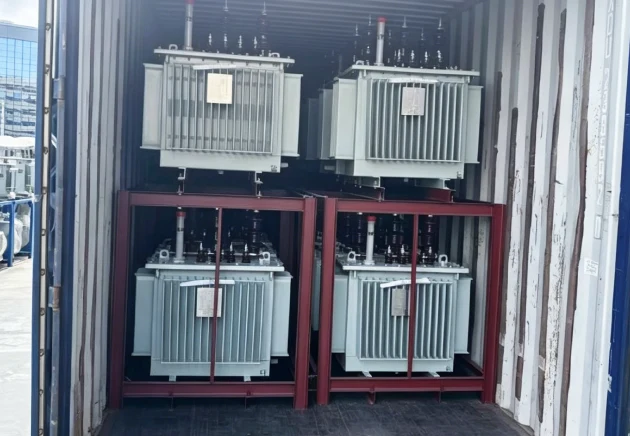

Packing and Delivery
For oil transformers, we usually use iron pallets for packaging. If the height of a single unit is less than 1.2 meters, we will make two layers of iron racks.
The specifications for container loading are usually calculated after the price is released (when the price is released, there will be a basic size and weight), and then the container loading is determined based on the size and weight.
