50 kVA Pole Mounted Transformer
Ideal for rural power grids, suburban residential communities, solar farm auxiliary power, and agricultural pumping, the OMEK 50 kVA pole mounted transformer is an efficient distribution transformer for decentralized power supply, which has low investment costs and a compact design.
By shortening the low-voltage supply distance, it significantly improves energy efficiency and cuts line losses by more than 99%. Additionally, it features a fully sealed structure, which can achieve high reliability, strong overload capacity, and easy maintenance.
OMEK is a professional transformer manufacturer offering a comprehensive range of products, including oil-immersed and dry-type transformers, prefabricated substations, etc. Our own manufacturing facilities and advanced testing laboratories ensure each and every transformer compliant with international standards such as IEC, ANSI, IEEE, and DOE.
50 kVA Overhead Transformer Core Parts

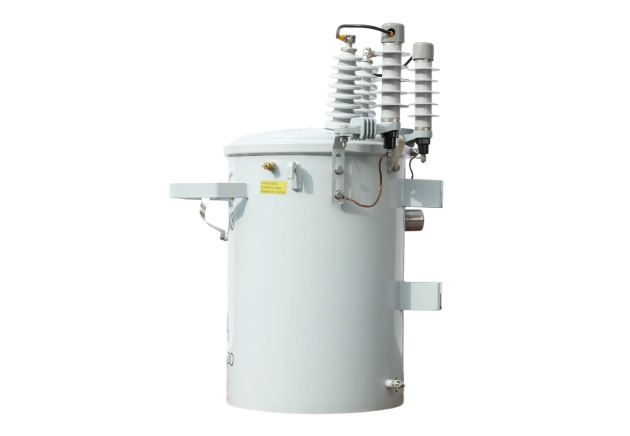

50 kVA Single Phase Pole Mounted Transformer General Specs
| Item | Specification |
|---|---|
| Capacity | 50 kVA (Customizable) |
| Primary Voltage | 2400 V to 34500 V (Customizable) |
| Secondary Voltage | 110 V to 690 V (Customizable) |
| Tapping Range | ±2 x 2.5% (Customizable) |
| Impedance Voltage | 1.5% – 3.0% (Customizable) |
| Rated Frequency | 50 Hz, 60 Hz (Customizable) |
| Fluid Type | Mineral Oil, Vegetable Oil (Customizable) |
| Cooling Type | ONAN |
| Core Material | Silicon Steel, Amorphous Alloy (Customizable) |
| Standards Compliance | ANSI, IEC 60076, IEEE, CSA |
| Certification | CE marked, UL listed |
| Characteristics | High Efficiency & Low Loss |
50 kVA Single Phase Pole Top Transformer Key Features

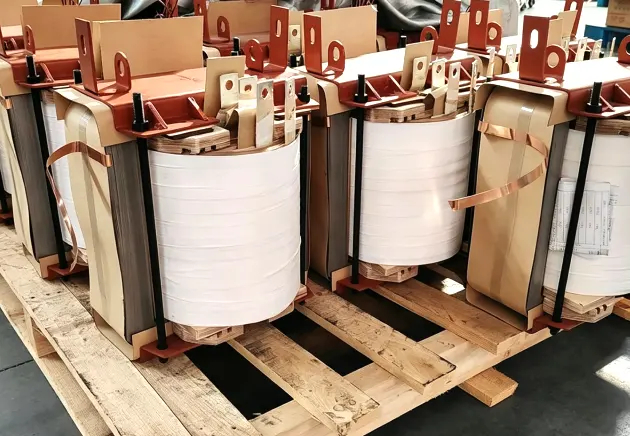

Core & Coil Design
High-grade grain-oriented silicon steel cores can provide ultra-low no-load losses, fully compliant with DOE 2016 / IEEE efficiency standards.
Fully Sealed Tank with Anti-Corrosion Coating
Fully sealed tank construction can keep moisture and air out, extending oil life and reducing maintenance cycle.
Single-Phase Pole Mounted Design with Dual-Voltage Output
Single-phase pole mounted design with dual-voltage low-voltage output (120/240V switchable), can be installed with single pole or double pole, and can be easily adjusted in the field for different grid standards.
50 kVA Pole Mounted Transformer Technical Specs
Quick choice:
D13 → Best for long-term use. Pays back in under 2 years, then saves you money for decades.
D11 → Best for temporary projects (under 2 years). Lower upfront cost, lower risk.
- D13-M(R)-(10-160)/10
- D11-M(R)-(10-160)/10
| D13‑M(R)‑(10‑160)/10 50 kVA Single‑phase Oil‑immersed Pole Mounted Distribution Transformers | |
|---|---|
| Parameter | Specification |
| Phase | Single phase |
| Rated Capacity (kVA) | 50 |
| High Voltage (kV) | 6 / 6.3 / 10 / 10.5 / 11 |
| Low Voltage (kV) | 2 × (0.22~0.24) or 0.22~0.24 |
| Frequency (Hz) | 50, 60 |
| Tapping Range | ±2 × 2.5% |
| Total Weight | 310‑390 kg |
| Connected Group Lable | li0, li6 |
| No‑Load Loss (W) | 96 |
| Load Loss (W) | 855 |
| No‑Load Current (%) | 0.7 |
| Short Circuit Impedance (%) | 3.5 |
| Insulation Class | Class A |
| Temperature Rise | 65 ℃ |
| Enclosure Protection Rating | IP54, IP65 |
| Overall Dimension (L×W×H, inches) | 24.4 × 19.7 × 45.5 |
| Mounting Dimension (L×W, inches) | 11.81 × 17.72 |
| D11‑M(R)‑(10‑160)/10 50 kVA Single‑phase Oil‑immersed Pole Mounted Distribution Transformers | |
|---|---|
| Parameter | Specification |
| Phase | Single phase |
| Rated Capacity (kVA) | 50 |
| High Voltage (kV) | 6 / 6.3 / 10 / 10.5 / 11 |
| Low Voltage (kV) | 2 × (0.22~0.24) or 0.22~0.24 |
| Frequency (Hz) | 50, 60 |
| Tapping Range | ±2 × 2.5% |
| Total Weight | 310‑390 kg |
| Connected Group Lable | li0, li6 |
| No‑Load Loss (W) | 120 |
| Load Loss (W) | 855 |
| No‑Load Current (%) | 0.7 |
| Short Circuit Impedance (%) | 3.5 |
| Insulation Class | Class A |
| Temperature Rise | 65 ℃ |
| Enclosure Protection Rating | IP54, IP65 |
| Overall Dimension (L×W×H, inches) | 24.4 × 19.7 × 45.5 |
| Mounting Dimension (L×W, inches) | 11.81 × 17.72 |
Benefits
50 kVA pole mounted design requires no ground space, which helps to save land costs and preserve land in dense urban or residential areas.
Lightweight and compact design helps handle and install on single or double poles, significantly reducing labor time and installation complexity.
Fully sealed tank ensures that moisture and air do not enter inside, reducing frequent oil checks and maintenance intervals for long-term reliability.
Related Products
Who OMEK Serve & Ideal Applications
50 kVA utility pole transformers can be used in rural grid extension, and reconditioning of line and municipal residential step-down distribution (7.2 kV/14.4 kV to 120/240 V).
You can see 50 kVA aerial transformers in rural road lighting, infrastructure upgrades and power supply to small commercial facilities, such as gas stations and roadside stores.
50 kVA pole mounted transformers are typically used as step-down units to support control systems, lighting, panels, cooling fans, and other auxiliary equipment inside the solar or wind farm.
50 kVA pole mounted transformers support farmland irrigation pumping station, mining site power supplies, and light industrial workshop power supplies.
Residential pole transformers serve suburban neighborhood distribution, rural electrification, and residential communities with 8–10 homes per unit.
ANSI/IEEE compliant 50 kVA pole mounted transformers with fast turnover and steady demand for distributors, developers, and wholesalers.
Purchasing Pain Points OMEK Solve
Pain Point: Long Lead Time & Project Delays
OMEK Solutions: Standardized manufacturing and high-capacity stock for 50 kVA pole mounted transformers ensure shorter lead time (4–8 weeks), significantly faster than traditional 20+ week lead time.
Pain Point: High Energy Loss & Operational Costs
OMEK Solutions: Our low-loss grain-oriented silicon steel cores are fully compliant with DOE 2016 energy efficiency standards (98.3%), saving electricity costs for a long term.
Pain Point: Corrosion & Harsh Environment Risks
OMEK Solutions: Our anti-corrosive powder coating and optional stainless steel tanks of 50 kVA overhead transformers passed 1,000 hours of salt spray testing, ideal for coastal or high-humidity regions.
Pain Point: Non-Compliance & Inspection Failures
OMEK Solutions: We perform 100% factory routine tests in accordance with IEEE C57.12.00 / ANSI C57.12.90, and provide you with complete certified test reports and CAD drawings for instant site approval.
Pain Point: Complex Custom Voltage Requirements
OMEK Solutions: We can customize your medium power pole mounted transformers, for example, dual-voltage, special tapping, core materials, vector group, impedance. And we do it without asking for large order quantities or charging high setup fees.
Why Choose OMEK
Several numbers prove OMEK POWER:
– 20+ Years of Industrial Expertise
– 50+ Countries and Regions
– 17,000+ Units Exported Per Year
– 6 Automated Production Lines
– 3 R&D Centers
Behind the number, OMEK remains committed to
FAQ
We offer a flexible MOQ of just 1 unit, with no minimum quantity restrictions.
Yes, sample orders follow a 4-step process:
Step 1: Review and approve the CAD technical drawing and datasheets.
Step 2: Confirm sample pricing, lead time, and shipping terms.
Step 3: 100% factory routine testing before shipping.
Step 4: Shipment sent with complete Certified Test Reports.
OMEK standard lead time for a 50 kVA pole mounted transformer is 4 to 8 weeks—significantly faster than the industry average of 20+ weeks. Express production scheduling is also available for urgent projects.
Absolutely. OMEK can customize high/low primary voltages, tapping range, vector groups, rated frequency, dual-voltage outputs, short-circuit impedance, enclosure material, winding material, core material, packing method, etc.
Remember: Qualified personnel ONLY, wearing full PPE and using hotsticks.
Step 1: Ground the tank FIRST before any other connections.

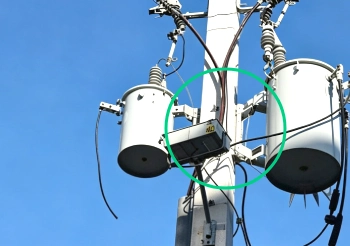

Step 2: Lift the 50 kVA overhead transformer only by its lugs, with lifting angles under 30° and mount it level on a sturdy pole.
Step 3: Set tap-changers and multi-voltage switches ONLY when de-energized.
Step 4: Connect neutrals first, then high/low-voltage leads according to the nameplate. Don’t forget to insulate unused leads.
Step 5: Run Turns Ratio Test if internal connections change.
Step 6: Energize and check the secondary voltage.
Step 7: After energization, check if there is any abnormal noise or oil leaks, then clear the site and hand over to the operating authority.
Yes, surge arresters are very important external additions to conventional 50 kVA pole mounted transformers. They are designed to protect the transformers’ insulation from damage caused by high-voltage surges, for example, lightning strikes or switching operations on the power grid.
However, there are completely self-protected 50 kVA pole mounted transformers whose surge arrestors are factory-installed on the tank (typically near the high-voltage bushings).
Step 1: Drive the ground rod, at least 3 m from the pole, in undisturbed low-resistivity soil, vertically, with top at least 0.6 m below grade.
Step 2: Run the insulated copper conductor (size per local code, eg. ≥ 35 mm²) up the pole from the rod.

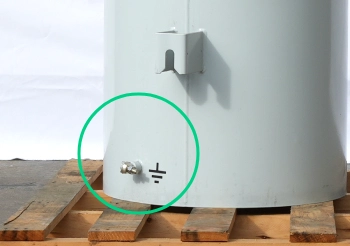

Step 3: Connect it to the arrester ground terminal and transformer tank. All joints must be tight and corrosion-protected.
Step 1: Power down high/low voltage sides, ground the equipment, and get your aerial safety gear ready, for example, harness, insulated buckets and ladders.
Step 2: Clean the bottom drain valve and discharge 1–2 liters to clear sediment and moisture.
Step 3: Direct the fluid into a clean, dry metal container or a glass bottle, filling it full to avoid air exposure.
Step 4: Seal it immediately and tag it with the transformer ID, date, temperature, and operator name for lab testing.
