OMEK 1500 kVA Transformer Overview
OMEK’s 1500 kVA transformer is a medium capacity distribution transformer. It is designed to supply three-phase electrical loads, and step down medium voltage to low voltage levels, such as 480Y/277 V, 400 V, or 380 V.
As a distribution transformer manufacturer and specialist in China, OMEK offers 1500 kVA dry type, oil-filled, and pad-mounted transformers for different application needs.
For each type, we can do customization for primary voltage, secondary voltage, insulation level, impedance, cooling method, enclosure, etc.
You only need to send your specification requirement or tell us which type you prefer. Our engineers can provide a detailed proposal and solution to meet your needs!
OMEK 1500 kVA Transformer Types and Specifications

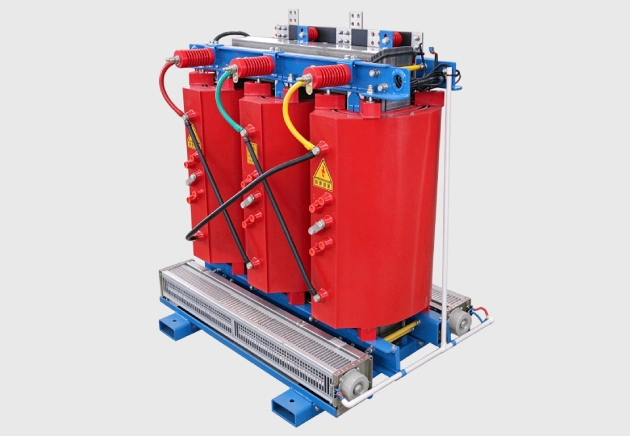

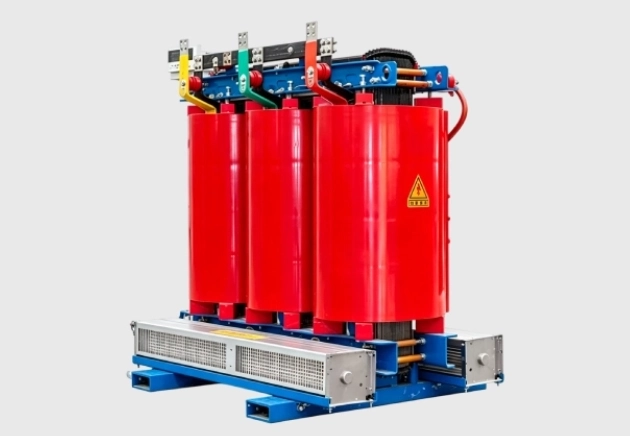

1500 kVA Dry Type Transformer
Product Details

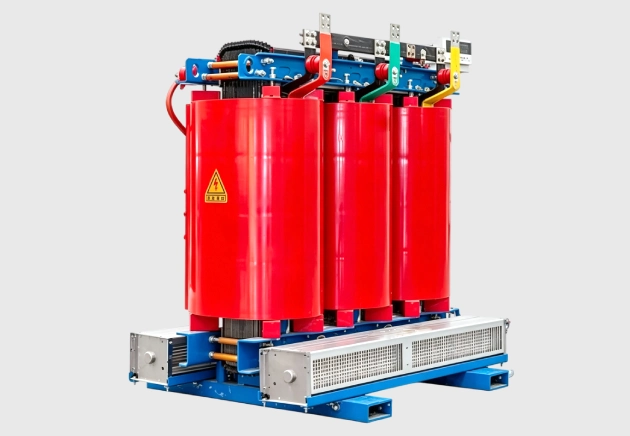

This type is designed in cast resin construction and with copper windings. The windings are encapsulated in epoxy resin for protecting against dust and moisture. No insulating oil filled, so there’s no risk of oil leaking.
The 1500 kVA rating provides enough capacity for large three-phase electrical loads. It allows the transformer to be installed close to the load in an indoor electrical room.
Before you decide to select the dry type of 1500 kVA, OMEK recommends consider main factors such as installation space, ventilation, ambient temperature, load profile and noise requirements. If you have any difficulty, don’t hesitate to contact OMEK – your repliable supplier of 1500 kva dry type transformers in China!
1500 kVA Dry Type Transformer Specifications
| Rated Capacity (kVA) | High Voltage (kV) | Tap Range | Low Voltage (kV) | Connection Group Label | No-load Loss (W) | Load Loss Class B 100°C (W) | Load Loss Class F 120°C (W) | Load Loss Class H 145°C (W) | No-load Current (%) | Impedance Voltage (%) | Sound Level (dB) | Overall Dimension L×W×H (mm) | Total Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1500 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | ±2×2.5% | 0.4 | Dyn11 | 2350 | 10490 | 11150 | 11950 | 0.25 | 6.0 | 67 | 1490×1510×1670 | 2850 |

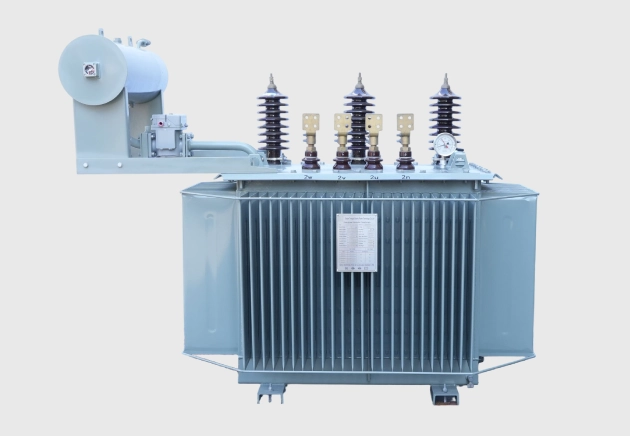

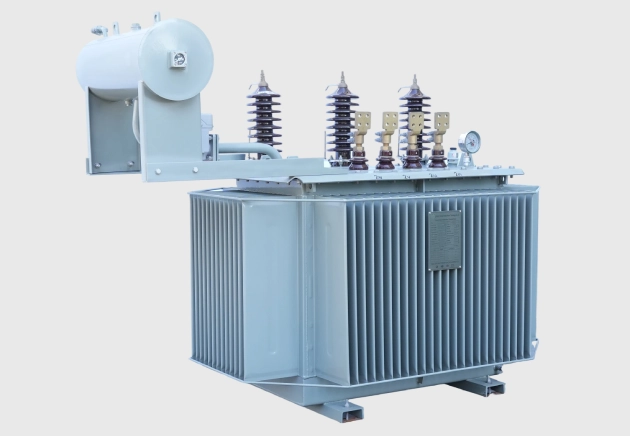

1500 kVA Oil Filled Transformer
Product Details

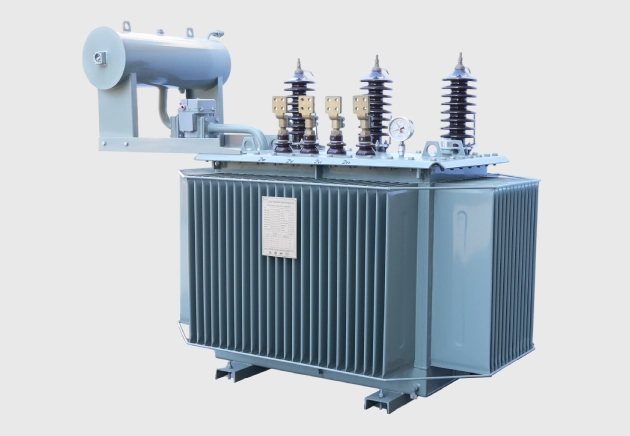

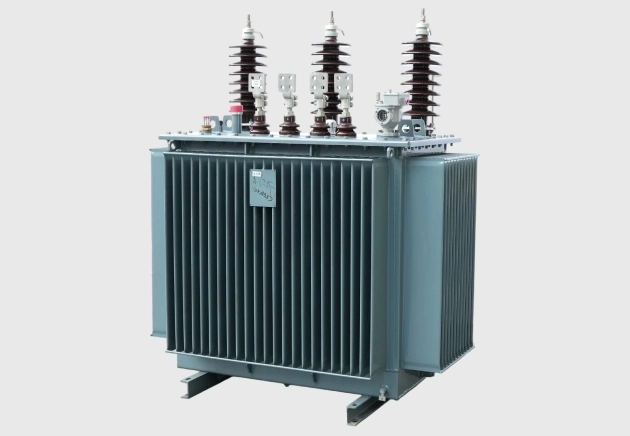

At the 1500 kVA capacity level, heat dissipation becomes an important part of transformer design. OMEK 1500 kVA oil filled transformer uses insulating oil, so the heat generated by the core and windings can be transferred to the transformer tank via the oil, and dissipated to the surrounding environment.
OMEK also uses a spiral winding structure to configure the low voltage winding, and adopts layers design for the high voltage windings. This helps to make a perfect cooling system.
No doubt, this oil filled transformer at 1500 kva is very good at handling large continuous electrical loads.
1500 kVA Oil Filled Transformer Specifications
| Rated Capacity (kVA) | High Voltage (kV) | Tap Range | Low Voltage (kV) | Connection Group Label | No-load Loss (W) | Load Loss (75℃) (W) | No-load Current (%) | Impedance Voltage (%) | Overall Dimension L×W×H (mm) | Total Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1500 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | ±2×2.5%, ±5% | 0.4 | Dyn11 / Yyn0 | 1560 | 13710 | 0.5 | 4.5 | 1730×1200×1465 | 3210 |

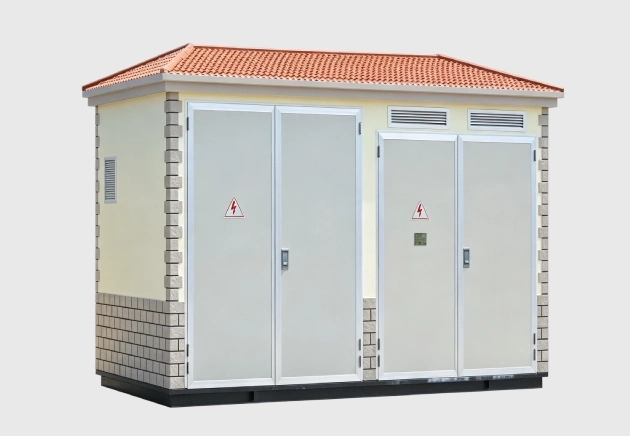

1500 kVA Pad Mount Transformer
Product Details
Like the 1500 kVA oil filled transformer, the pad mount type is also used for outdoor applications and provides large 3-phase loads.

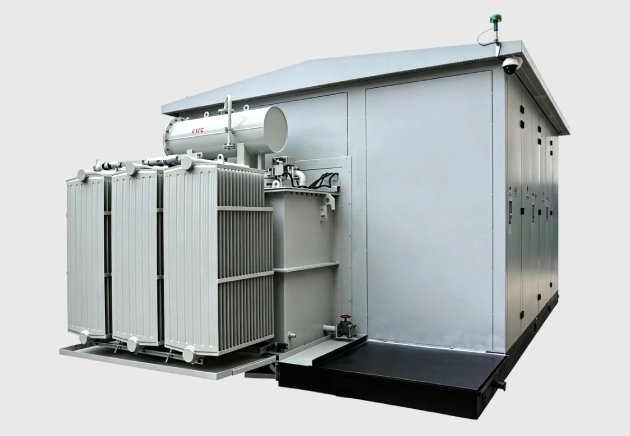

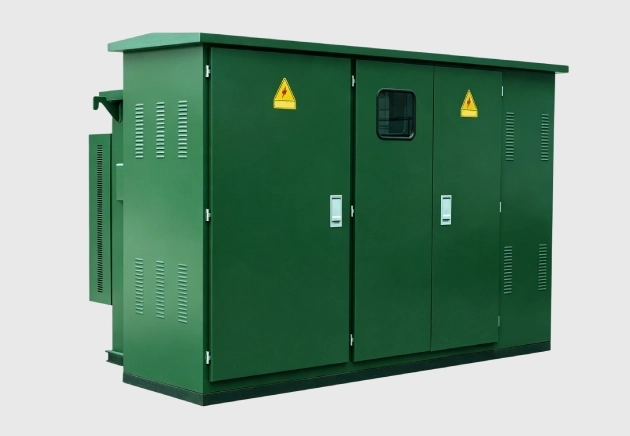

This ground mounted transformer places the transformer, HV and LV components inside an integrated enclosure. It is compact, weather resistant, easy to install and beautify the environment.
OMEK, as a 1500 kVA pad-mounted transformer manufacturer and supplier in China, can do configurations of radial feed and ring types. Tell us your required connection mode and other requirements, our engineers can measure them and provide you a complete solution.
1500 kVA Pad Mounted Transformer Specifications
| Total Power (kW) | AC Input | AC Boost | High Voltage Switch Cabinet | Energy Saving Transformer | Box Transformer Measurement and Control | Overall Dimensions (Length × Wide × High) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 1500 | ~800V (Wind Power) | 35kV ~ 38.5kV | GGR-35A/40.5 | S11-1600KVA/35 | RS485 | 4300×3000×2900 mm (For reference only) | 7000 (For reference only) |
1500 kVA Transformer Common Uses

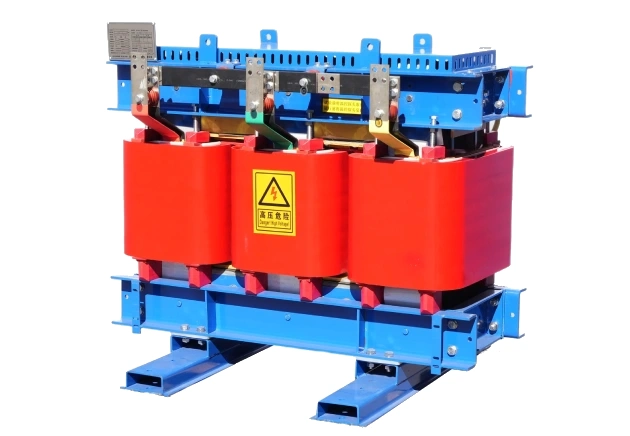

As the AI computing power is getting increasingly stronger, the middle-large rated capacity such as 1500 kVA transformer are well suited to meet this demand. The 1500 kVA dry type transformer can provide enough electrical capacity that supports the data center’s IT and facility loads.

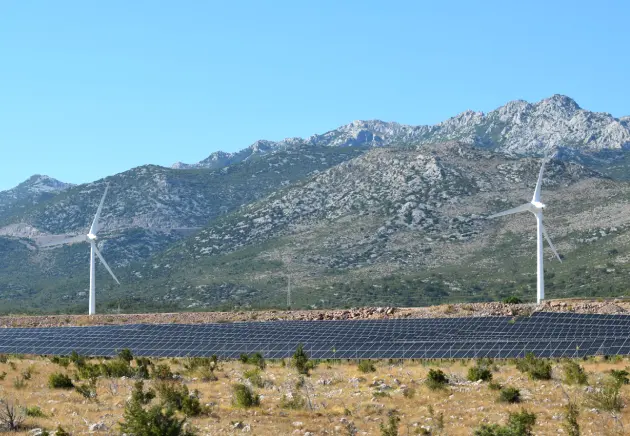

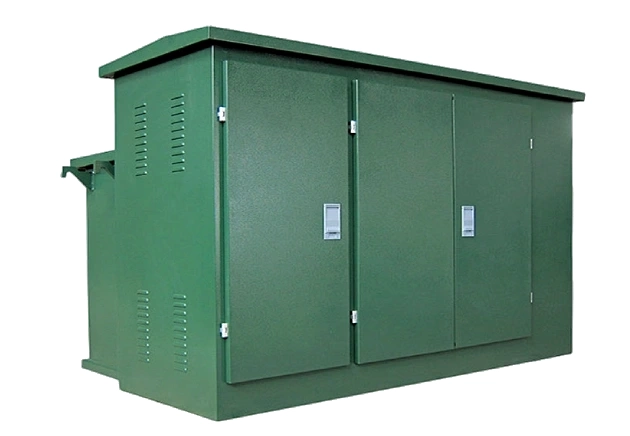

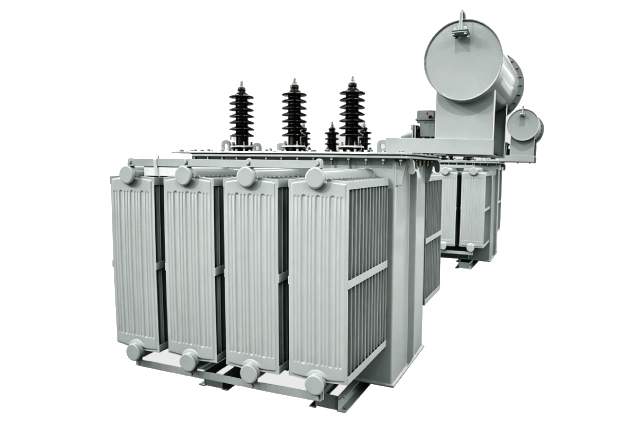

1500 kVA transformer is well suited for power distribution before and after grid connection. It can work as a step up transformer or a step down transformer. 1500 kVA pad mounted transformer, an integrated substation, works as a power conversion unit in photovoltaic and wind power.

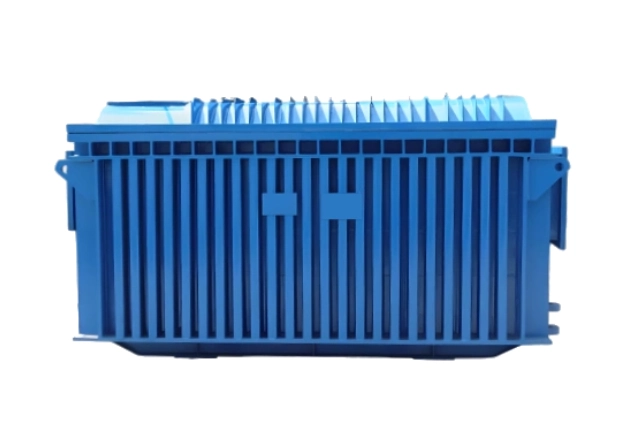

Large infrastructure projects need stable distribution power. A 1500 kVA transformer can provide reliable power distribution for pumps, motors, HVAC systems, lighting, and other essential infrastructure loads. Multiple transformer units can support separate load centers and system expansion.
Similar kVA Ratings to 1500 kVA Transformer

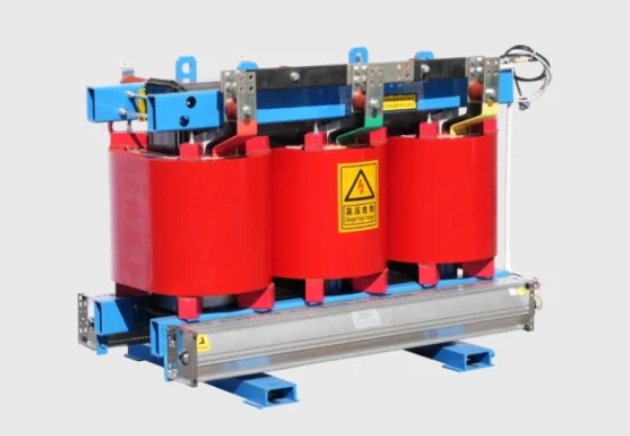

Rated Capacity: 1000 kVA
Full-Load Current@480 V:1,202 A
Application: Projects with a calculated load around 800–1000 kVA
Transformer Type: Dry / Oil / Pad-mounted
Customization: Available
Rated Capacity: 1250 kVA
Full-Load Current@480 V: 1,503 A
Application: Projects with a calculated load around 1000–1250 kVA
Transformer Type: Dry / Oil / Pad-mounted
Customization: Available

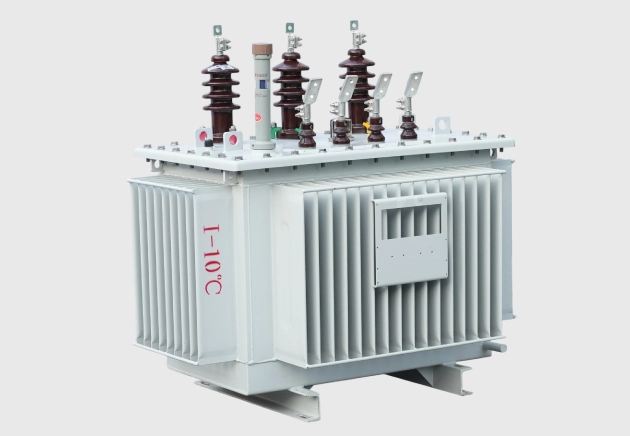

Rated Capacity: 1600 kVA
Full-Load Current@480 V: 1,925 A
Application: Projects with a calculated load slightly above 1500 kVA
Transformer Type: Dry / Oil / Pad-mounted
Customization: Available

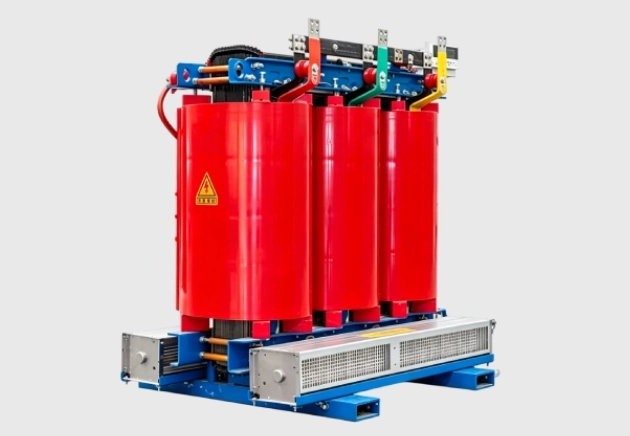

Rated Capacity: 2000 kVA
Full-Load Current@480 V:2,406A
Application: Projects with a calculated load approaching or exceeding 1600 kVA
Transformer Type: Dry / Oil / Pad-mounted
Customization: Available
Interested In Our Transformer 1500 kVA?
Share your technical requirements with our engineering team. Our team will hear your concerns carefully and design a 1500 kVA transformer matching your voltage and winding specifications. Reach out for a quotation now!
OMEK Customizes Voltages for Your 1500 kVA Transformer
To meet diverse requirements and application needs of clients, OMEK customizes the 1500 kVA transformer voltages and winding connections. Below is the common primary and secondary voltage combinations we can configure. For bespoke solutions, it’s also our professional field.
| Primary Voltage | Secondary Voltage | Vector Group |
|---|---|---|
| 13.2 kV | 480Y/277 V | Dyn11, Yyn0 |
| 13.8 kV | 480Y/277 V | Dyn11, Yyn0 |
| 2.3 kV | 480 V | Dyn11, Yyn0 |
| 2.4 kV | 480 V | Dyn11, Yyn0 |
| 4.16 kV | 480 V | Dyn11, Yyn0 |
| 11 kV | 0.4 kV | Dyn11, Yyn0 |
| 33.8 kV | 380/220 V | Dyn11, Yyn0 |
| 34.5 kV | 380/220 V | Dyn11, Yyn0 |

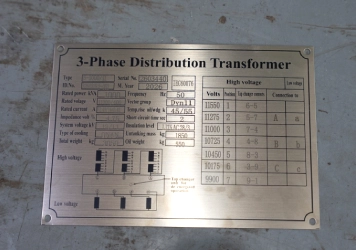

1500 kVA Transformer Nameplate

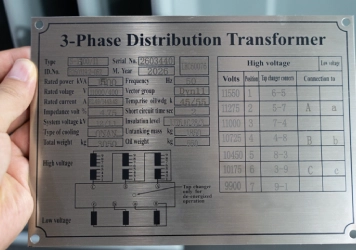

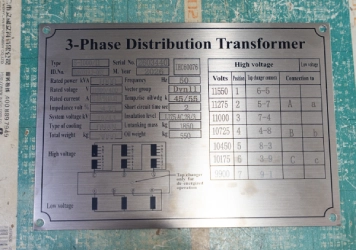

OMEK designs nameplate templates to match your transformer model and special requirements. All nameplates are comply with your local regulatory standards and after your confirmation.
1500 kVA Transformer Oil Capacity
OMEK’s 1500 kVA oil filled transformer has two types, one is with the conservator, and the other is a hermetically sealed tank. They have different oil capacities. The quantity of oil fluctuates due to the influence of parameters.
FAQs
Have any questions? We’re here to help you out.
1500 kVA can be customized with different primary and secondary side voltages. Different voltages result in different full-load currents. The last two columns of the table below are the circuit breakers recommended by OMEK for use with different currents.
| Transformer | Primary Voltage | Secondary Voltage | Primary Full Load Amps | Secondary Full Load Amps | Recommended Primary Circuit Breaker | Recommended Secondary Circuit Breaker |
|---|---|---|---|---|---|---|
| 1500 kVA | 13.2 kV | 277V | 65.6 A | 1804 A | 80 A (125% of 65.6A) | 2500 A |
| 1500 kVA | 2.3 kV | 480V | 376.5 A | 1804 A | 500 A | 2500 A |
| 1500 kVA | 2.4 kV | 480V | 360.8 A | 1804 A | 450 A | 2500 A |
| 1500 kVA | 4.16 kV | 480V | 208.1 A | 1804 A | 250 A | 2500 A |
| 1500 kVA | 11 kV | 400V | 78.7 A | 2165 A | 100 A | 3000 A |
| 1500 kVA | 13.8 kV | 277V | 62.7 A | 1804 A | 80 A | 2500 A |
| 1500 kVA | 33.8 kV | 400V | 25.6 A | 2165 A | 30 A | 3000 A |
| 1500 kVA | 34.5 kV | 220V | 25.1 A | 2279 A | 30 A | 3000 A |
| Parameter | S20-M (Class 2 Energy Efficiency) | S14-M (Class 2 Energy Efficiency) | S13-M (Class 3 Energy Efficiency) | S11-M |
|---|---|---|---|---|
| Impedance Voltage (%) | 4.5 | 4.5 | 4.5 | 4.5 |
| Overall Dimension Length × Width × Height (mm) | 1670×1130×1580 | 1670×1130×1580 | 1730×1200×1470 | 1730×1200×1470 |
| Total Weight (kg) | 3710 | 3710 | 3210 | 3210 |
| Parameter | SCB18 (Class 1 Energy Efficiency) | SCB14 (Class 2 Energy Efficiency) | SCB13 | SCB12 (Class 3 Energy Efficiency) | SCB10 |
|---|---|---|---|---|---|
| Impedance Voltage (%) | 6 | 6 | 6 | 6 | 6 |
| Overall Dimension Length × Width × Height (mm) | 1760×1910×1390 | 1490×1510×1670 | 1760×1910×1390 | 1490×1510×1720 | 1490×1510×1670 |
| Total Weight (kg) | 3760 | 2850 | 3760 | 2910 | 2850 |
| Item | Parameter |
|---|---|
| Model | JSJ-1500/35 |
| Total Power (kW) | 1500 |
| AC Input | ~800V (Wind Power) |
| AC Boost | 35kV ~ 38.5kV |
| High Voltage Switchgear | GGR-35A/40.5 |
| Energy-saving Transformer | S11-1600KVA/35 |
| Box-type Transformer Monitoring & Control | RS485 |
| Overall Dimension (L × W × H) | 4300×3000×2900 mm (For reference only) |
| Weight (kg) | 7000 (For reference only) |
