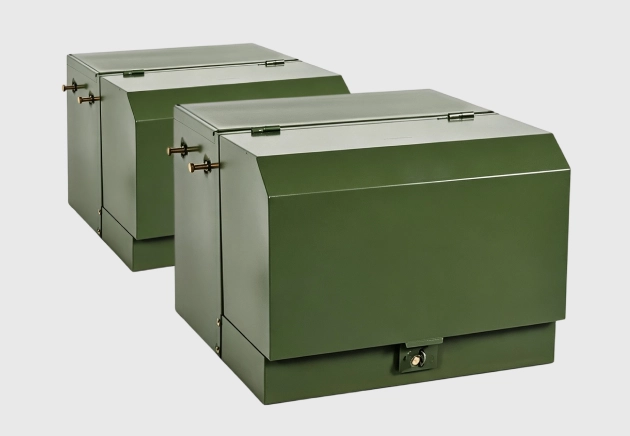

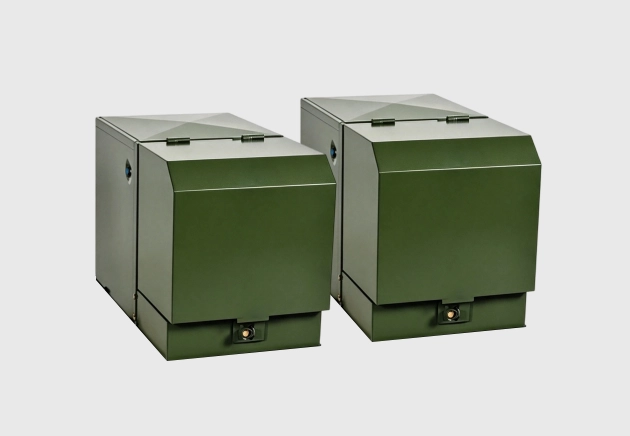

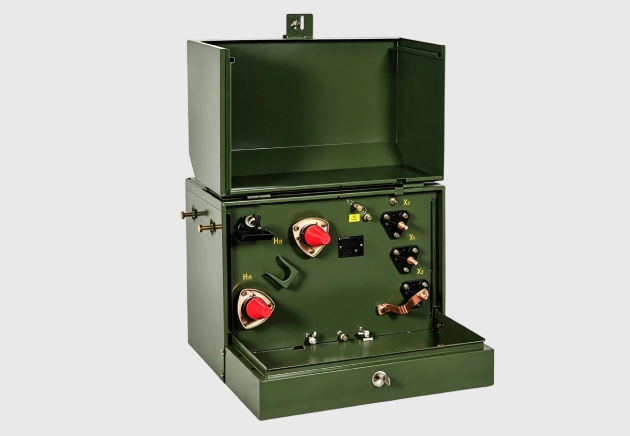

Single Phase Pad Mounted Transformer

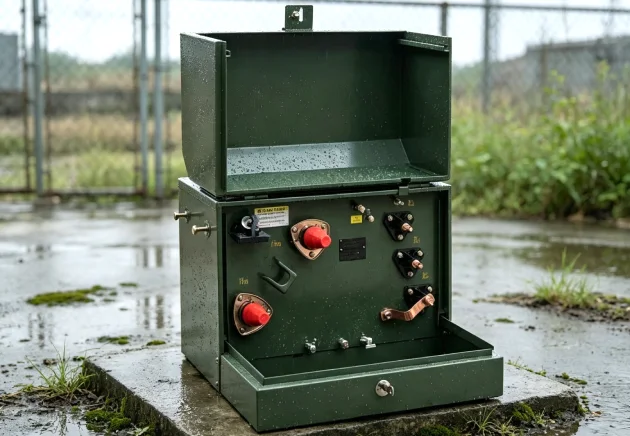

OMEK Power single-phase pad-mounted transformer is the type with a clamshell cabinet for easy opening and uninhibited access to connection. Versatility of the design allows for various protection and switching configurations.
It provides multi-service options while meeting the reliability and safety requirements of any distribution system. It has various ratings and with a wide range of advanced configurations to meet customer requirements.
✅ Fully sealed oil-immersed structure
✅ Available ratings 15-500kVA
✅ Single-phase 120/240V output
✅ In compliance with ANSI and NEMA standards
- General Specification
| Capacity(kVA) | High Voltage(V) | Tapping Ranges | Low Voltage(V) |
|---|---|---|---|
| 15 | 2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500 | ±2×2.5% | 110 |
| 25 | 120 | ||
| 37.5 | 208 | ||
| 50 | 240 | ||
| 75 | 277 | ||
| 100 | 347 | ||
| 167 | 415 | ||
| 250 | 416 | ||
| 333 | 480 | ||
| 500 | 600 690 |
Oil Immersed Single Phase Pad-Mounted Transformer
Features
✅ This oil filled transformer is ground mounted in a small size and light weight, easy to install and maintain.
✅ With high energy efficiency and low loss, it can effectively save energy with high voltage and low voltage coils inside, and the wound core structure design.
✅ Adopts cold-rolled silicon steel sheets with super low loss and low noise.
✅ Pure copper coils lead to better confuctivity.
✅ Compact design and small volume
✅ Capable of operating in extreme environments, including humid coastal areas.
OMEK Single Phase Pad Mounted Transformer Benefits
Our pad mounted transformer single phase covers capacities from 15 kVA to 500kVA, delivering flexible power solutions to meet all residential areas, commercial and industrial electricity demands.

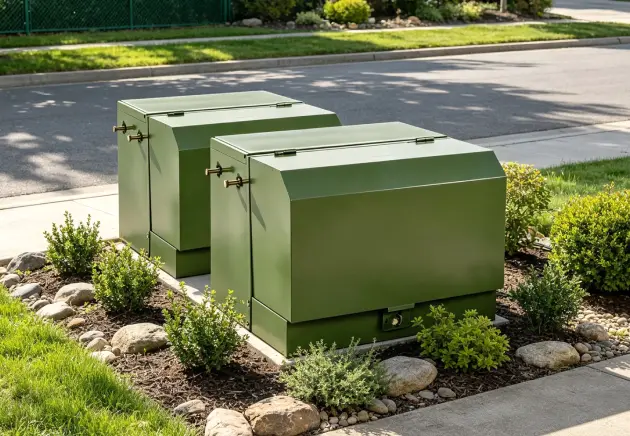

A low-profile integrated enclosure with an olive green color. It blends naturally with the surrounding green plants and hedges, and does not obstruct the view.

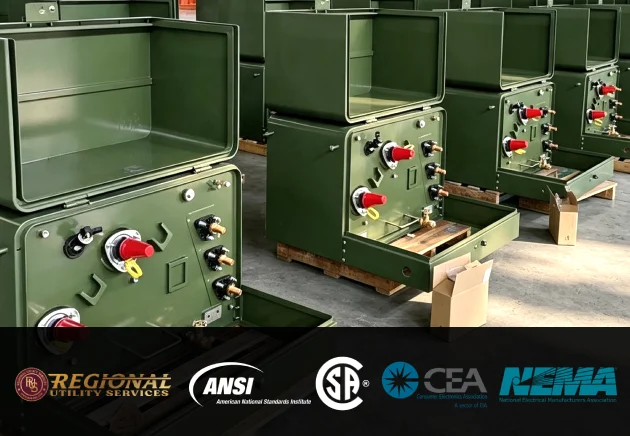

From design to manufacturing, the product strictly follows all North American power standards, including ANSI, NEMA, RUS, CSA/CEA. It can directly meet the grid entry and acceptance requirements especially in the United States and Canada.

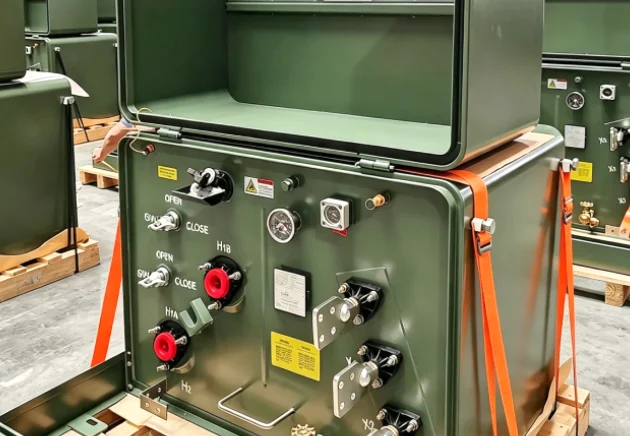

OMEK Power’s single phase pad mounted distribution transformers come standard with Bay-O-Net plug-in high-voltage fuses, high and low voltage independent isolation compartments, and automatic pressure relief valves.
In the event of overload or short-circuit faults, they can quickly isolate and disconnect to avoid risks such as box explosion or fire, making it more safer.
It is equipped with mineral transformer oil as the standard configuration, and an optional FR3 biological flame-retardant insulating liquid is available.
The liquid is fully biodegradable and will not pollute the soil and groundwater, making it very friendly to the ecological environment of residential areas, farms, etc.

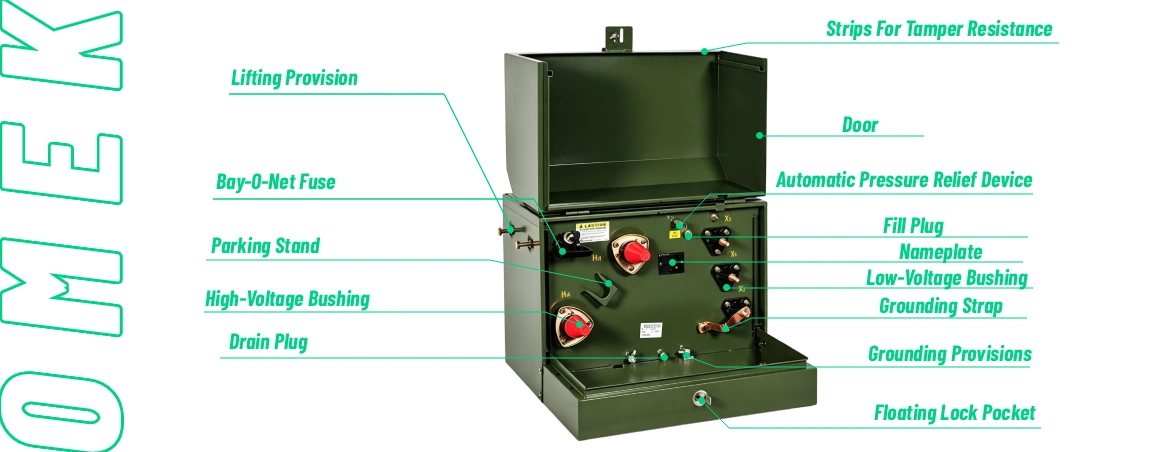

OMEK Single Phase Pad Mounted Transformer Structure
Looking for a Single-Phase Pad-Mounted Transformer?

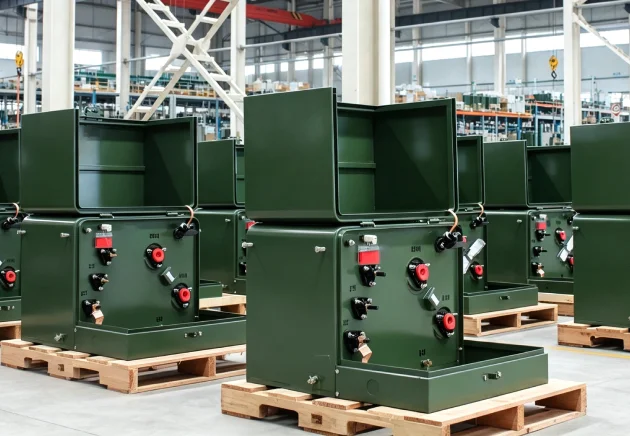

OMEK Power, a transformer factory in China, can customize single phase pad mounted transformer with various capacities and configurations. Each transformer is 100% tested. We offer bulk engineering procurement services as well as individual retail shipments.

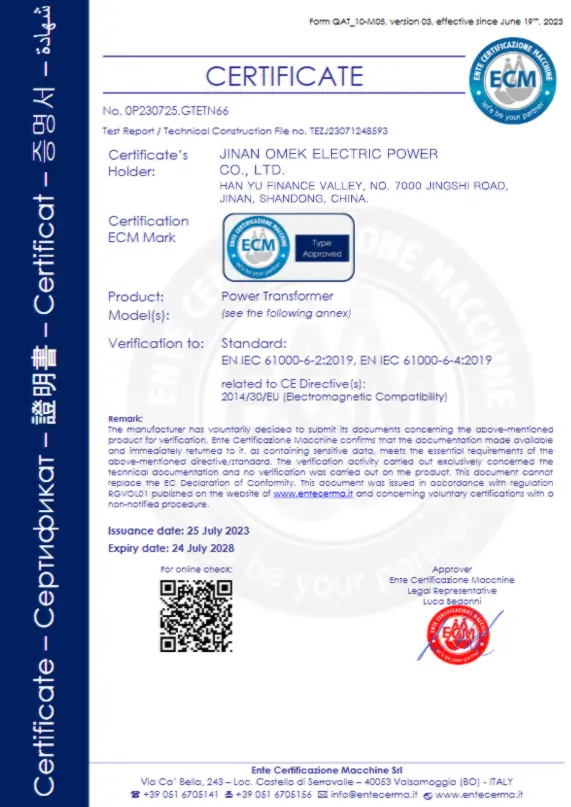

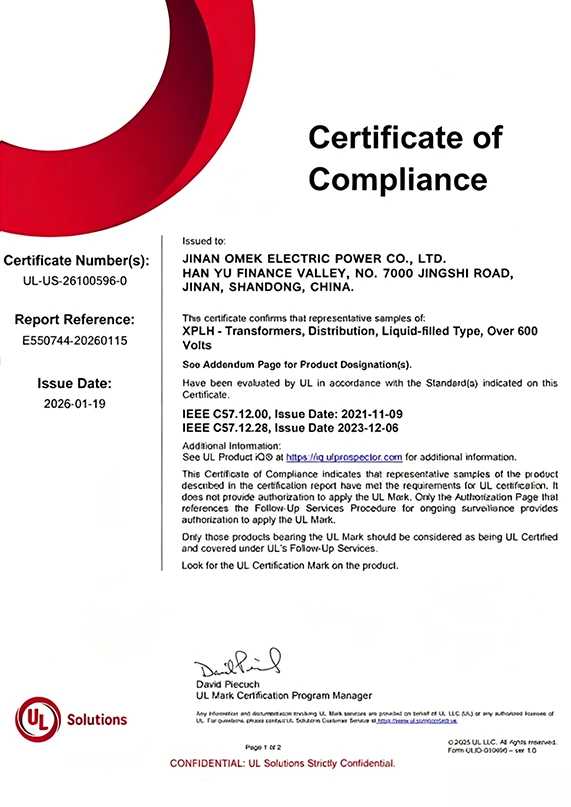

Our Certificates
Join OMEK as a Dealer
OMEK Power not only produces transformers, but also upstream and downstream products of transformers, with a complete product line. We can customize production according to the voltage, frequency and power grid standards of various countries.
We support customization of agents’ own brand logos, outer packaging and product technical parameters, and help partners build their own local electrical brands.
OMEK Power offers one-stop support to overseas electrical traders, EPC general contractors, and power engineering companies. We give sufficient space for distributors to set their own prices. Whether to choose bulk distribution or retail, we ensure our dealers achieve stable profits!
FAQs
Have any questions? We’re here to help you out.

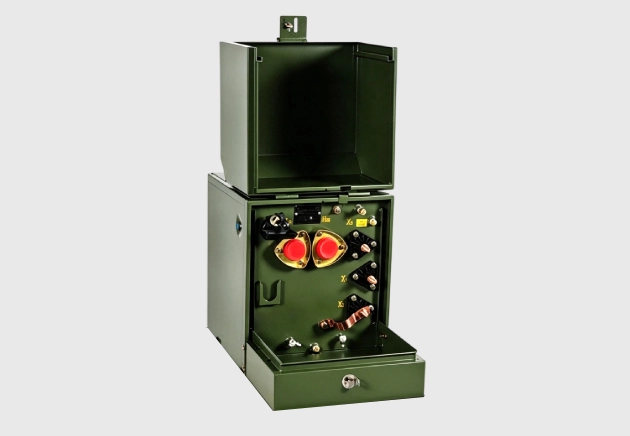

Single phase pad mounted transformer connections:
On the primary side, H1 and H2 connect to the underground high-voltage cables. On the secondary side, X1 and X2 are the two hot legs, and X0 is the center-tap neutral, which needs to be grounded. The transformer enclosure and tank should also be properly bonded and grounded.
For a loop feed system, H1 is the incoming line and H2 is the outgoing line.
For a radial feed system, H1 is the incoming line and H2 is grounded.
For all connection methods, please refer to the transformer nameplate. No other connections should be made except those indicated on the nameplate.
Under standard configuration, the sizes of single phase pad mounted transformers manufactured by OMEK Power are as below (W×D×H, unit: mm):
- 15kVA /25kVA /50kVA：610 × 740 × 840
- 75kVA /100kVA：660 × 780 × 880
- 167kVA /250kVA：730 × 850 × 950
Please note:
1. For pouring the concrete base, OMEK engineers suggest leave at least 6 inches (15cm) margin beyond the transformer footprint on all sides.
2. Before pouring of the concrete base, please contact our engineers to provide the accurate drawings and dimensions of your requested model.
