Transformer Overview
OMEK Power’s 500 kVA transformer is designed as oil filled and pad-mounted installation in outdoors. It adopts tamper-proof and split cabin layout design.
This 500 kVA pad-mounted transformer delivers stable, low-carbon, reliable power delivery for global projects.
It is manufactured in OMEK Power’s standardized workshops in China that are under full ISO-9001 quality control. Each unit undergoes strict routine tests complying with ANSI C.57, IEEE, DOE, UL certification.
- General Specification
Type: Hermetically sealed oil immersed transformer
Phase: 3 phase
Cooling Method: ONAN
Winding: Copper
Tank: Fully sealed hermetic oil tank
Primary & Secondary Voltage Combinations: 10/0.4kV, 20/0.4kV, 35/0.4kV (others can be customizable)
Tap Ranges: (±5% / ±2×2.5%)
Vector Group: Dyn11/Yyn0
Frequency: 50Hz/60Hz (customizable)
Impedance Voltage: 4% (10kV class); 6% for 20/35kV high-voltage models
Application: industrial parks, photovoltaic/wind power grid connection, residential districts, metallurgy, oil and railway power supply scenarios
OMEK Power 500 kVA Pad Mounted 3 Phase Oil Immersed Transformer
500 kVA 3 Phase Oil Filled Transformer S22-M-500/10
| Rated capacity | High voltage | Tap range | Low Voltage | Connected group label | No-load loss | Load loss (75℃) | No-load current | Impedance voltage | Overall dimension (L × w × h) | Total weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 500 kVA | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 kV | ±2×2.5 / ±5 | 0.4 kV | Dyn11 / Yyn0 / Yzn11 | 385 W | 3900/3710 W | 0.16 % | 4 % | 1370 × 940 × 1190 mm | 1430 kg |
High Voltage Compartment
The high-voltage compartment uses fully sealed, fully insulated gas-insulated switchgear (GIS), ensuring safe insulation, waterproofing, and protection against electric shock.
It consists of 3 sections – incoming feeder, metering, and outgoing feeder.
Transformer Part
The transformer model is S22 500 kVA 3 phase oil-immersed transformer, protected by load switches and fuses.
Low Voltage Compartment
The low-voltage compartment includes one low-voltage incoming cabinet, one outgoing cabinet, and one capacitor compensation cabinet.
The capacitor compensation employs intelligent capacitors, and it can automatically adjust for optimal compensation performance.
The number of outgoing circuits can be customized according to your requirements.
Enclosure

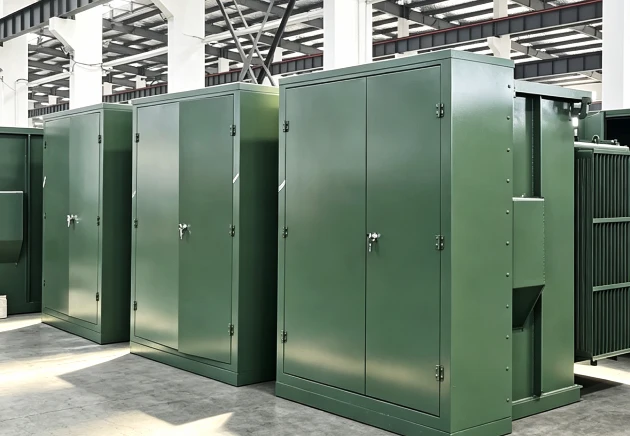

The overall enclosure is made of cold-rolled steel sheet, coated with powder paint in Bell Green.
OEM
When OMEK Power receives your drawing requirements, a professional team of engineers will contact you. The transformer body, high-voltage chamber, low-voltage chamber and the box shell are all in our customization capabilities. In addition, we will fully consider your usage scenarios to customize dedicated functions.
500 kVA Pad Mounted Transformer Benefits
An integrated design leads to very easy installation.

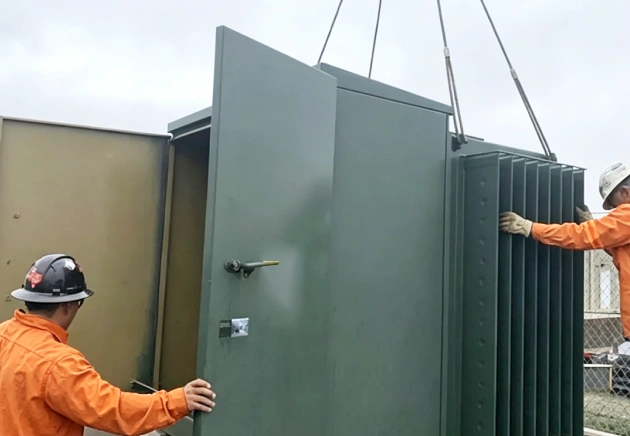

This 500 kVA pad mounted transformer is pre-assembled in OMEK’s factory, while at your project site, you just need to simply lift it into place and connect cables.
Power delivery can be achieved within 1-2 days.
OMEK supplies FR3 natural ester eco-friendly fire-resistant insulating oil for your chosen.
Comprehensive high and low voltage electrical protection, and mechanical anti-misoperation interlocks equipped prevent human operational accidents.
The enclosure of the 500 kVA pad mount transformer features a fully sealed, waterproof, and dustproof design. It adopts IP34/IP44 protection rating.
You can also choose a higher grade hot-dip galvanized steel plates, or require custom configurations for extreme conditions such as high temperature, extreme cold, and high altitude.
High-voltage circuits can be customized with dual power inputs, multiple high-voltage outputs, and bidirectional high-voltage metering.
Low-voltage output circuits can be increased or decreased as needed. It can meet diverse application requirements.
In addition to its landscape-friendly feature, the 500 kVA pad mount transformer can be filled with biodegradable natural ester insulating fluid, which is biodegradable.
Our S22 series 3 phase oil filled transformer can be customized to meet the highest level energy efficiency standards, helping you achieve carbon emission reduction goals.
Talk to Our Engineers
Your project is unique, and so is our solution. Send us your drawings now and our engineering team will work closely with you to tailor to your needs.
Experience the professional and dedicated support from our engineers now!
OMEK Power 500 kVA Pad Mounted Transformer Manufacturing Process
Shipping and Delivery
For the orders of 500 kVA pad mounted transformer with standardized specification, our production time is within 2 weeks.
For the 500 kVA pad mount transformers that need deeply customization, the delivery time is within one month.
Any urgent orders, we can open a green channel for the production line, and the 500 kVA pad mounted transformer can be delivered 10 days in advance.
FAQs
Have any questions? We’re here to help you out.
The price of a 500 kva pad-mounted transformer can be RMB 70,000, 110,000, or 150,000. Why is there such a big difference in price? First, let’s look at the core component of the 500 kVA pad-mounted transformer, the transformer part. If the material is aluminum, the transformer is approximately over ten thousand yuan, but if it is copper, it is nearly 40,000 yuan.
Then for the connection bar section, the price of the copper bars is five times higher than that of the aluminum bars.
In addition, the prices of switches and the components used inside will also vary depending on the materials used.
Lastly, if you have more special customization requirements, such as the need for a more spacious interior space of the box, then OMEK needs to make an elevated type, which will cost 1,000 to 1,500 USD more than the ordinary one.
