300 kVA Pad Mount Transformer - 13.8kV Delta Primary to 480Y/277 Wye-n Secondary
Transformer type: oil immersed transformer
Phase: 3 phase
Feed Type: loop feed or radial feed
Rated capacity: 300 kVA
Vector group: DYN1 or YNyn0 or others
Primary voltage: 12.47kV, 13.8kV (up to 35 kV)
Secondary voltage: 480V
Tap range: ±2×2.5%;
Frequency: 50/60 Hz
Mounting: Pad Mounted; compartmental type transformer
Starting at: USD 5,000
Industry standards: NEMA, ANSI C.57, DOE, CSA, and IEEE, etc.
300 kVA Three Phase Pad Mounted Transformer
OMEK Power 300 kVA Pad Mounted Transformer is manufactured strictly according to standards below, including:
| Category | Standards |
|---|---|
| Efficiency Requirements | DOE 2016, CSA Efficiency Standards |
| Transformer Design | ANSI/IEEE C57.12.00, C57.12.34 |
| Enclosure Requirements | ANSI/IEEE C57.12.28, C57.12.29 |
| Bushings & Accessories | IEEE 386, IEEE C62.11, IEEE C62.22 |
| Safety Requirements | ANSI Z535.4 |
| Insulating Materials | ASTM D3487, ASTM D6871 |
| Canadian Standards | CSA C88, CSA C227 series |
300 kVA Pad Mounted Transformer Features
This three phase pad mounted transformer is designed and manufactured in compliance with all applicable ANSI and DOE 2016 standards. It is oil-filled, 65°C temperature rise, and designed for usual service conditions per IEEE C57.12.00.
300 kVA ratings with primary voltages 2.4 to 335 kV (150 kV BIL) and secondary voltages up to 600 volts.
All standard tap configurations available: dual voltage in most combpinations, dual voltage with taps only (series connection only) and impedance and loss options available in most designs.
Standard Features
1. Small size and compact structure
2. Fully sealed, fully insulated, no insulation distance, and reliable personal safety.
3. It can be used in the looped network and can be used in the terminal. Conversion is very convenient, and the reliability of the power supply is improved.
4. Low loss, lower than S9 type transformer loss
Safety Protection Features
The cable connector can operate 200A load current, and can be used as load switch in emergency situations, and has the characteristics of isolation switch.
Double fuse protection, reducing operating costs.
The fuse of the plug-in fuse is a double-sensitive fuse (temperature, current); Delta/Y is used.
The connection method and the three-phase column structure have the advantages of high voltage quality, no drift of the neutral point, no heat generation of the cabinet, low noise, and good lightning protection.
300 kVA Pad Mounted Transformer Detailed Specifications
| Rated Capacity(KVA) | Voltage Combined | Vector-group | ||
|---|---|---|---|---|
| High Voltage(V) | Tapping Ranges | Low Voltage(V) | ||
| 300 kVA | 2400 | ±2×2.5% | 110 | Ynyn0 Dyn1 |
| 4160 | 120 | |||
| 7200 | 208 | |||
| 7620 | 240 | |||
| 12000 | 277 | |||
| 12470 | 347 | |||
| 13200 | 415 | |||
| 13800 | 416 | |||
| 14400 | 480 | |||
| 19920 | 600 | |||
| 24940 | 690 | |||
| 34500 | ||||
Dimensions: 1800mm*1600mm*1700mm
HV Compartment Base Wireway Dimensions:
20-Width x 5-Depth
LV Compartment Base Wireway Dimensions:
16-Width x 5-Depth
MV/LV Compartment Cabinet Depth: 20-Depth
Dry Weight (w/o Oil): 1320kg
Why Choose OMEK Power's 300 kVA Pad Mounted Transformer?
Have a Drawing? We Can Customize It.
OMEK has adequate standard pad mounted transformers of 300 kVA in our stock, and can be delivered very fast. We also support full drawing customization.
Send us your dimension drawings, electrical schematics or special utility specification diagrams, we produce strictly according to your design. Get matched quotation within 24H!
300 kVA 3 Phase Pad Mounted Transformer Enclosures
The 300 kVA three phase transformer‘s fuel tank is tightly welded to the box body, forming an integrated structure. Two compartments, one for high voltage and the other for low voltage.
Testing and Shipping
Winding Resistance Test
Insulation Resistance Test
Voltage Ratio Error Test
Short-circuit Impedance Test
No-load Loss (Wattage) Test
Load Loss (Wattage) Test
Induced Voltage Withstand Test
Separate Source Voltage Withstand Test
Pressure Integrity Test

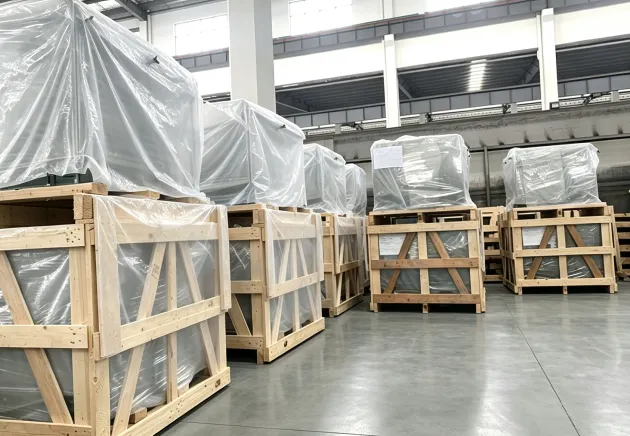

We can pre-assemble the entire 300 kVA pad mount transformer as per your requirements. If your site is limited, we can deliver it in separate parts. It is fixed by wooden boxes and steel brackets, and all oil port is sealed and protected.
